Basic Information
Curtain Wall Kind
Aluminum Panel
Usage
Exterior/Interior Wall
Special Function
Photovoltaics Support
Common Thickness
2.0mm, 2.5mm, 3.0mm
Coating
PVDF, Polyester, Powder
Finished

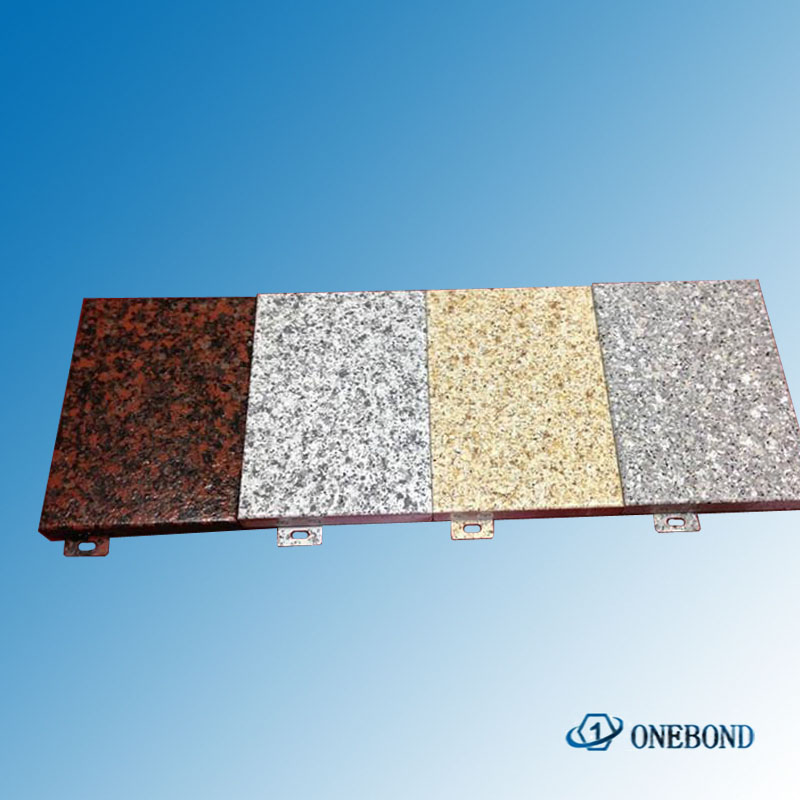

Stone, Wood, Enameled Grain
Product Specification
- ◈ Material: Aluminum alloy sheet, AA3003 with H24
- ◈ Thickness Options: 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 6mm
- ◈ Optimal Size: 1600 * 4500mm (Customizable)
- ◈ Surface Coating: Akzo Nobel / PVDF / Powder coating technical process
- ◈ Style: Plane, curved, perforated or as per request
- ◈ Quality Guarantee: 20 years
- ◈ Color: RAL color (Customizable to clients)

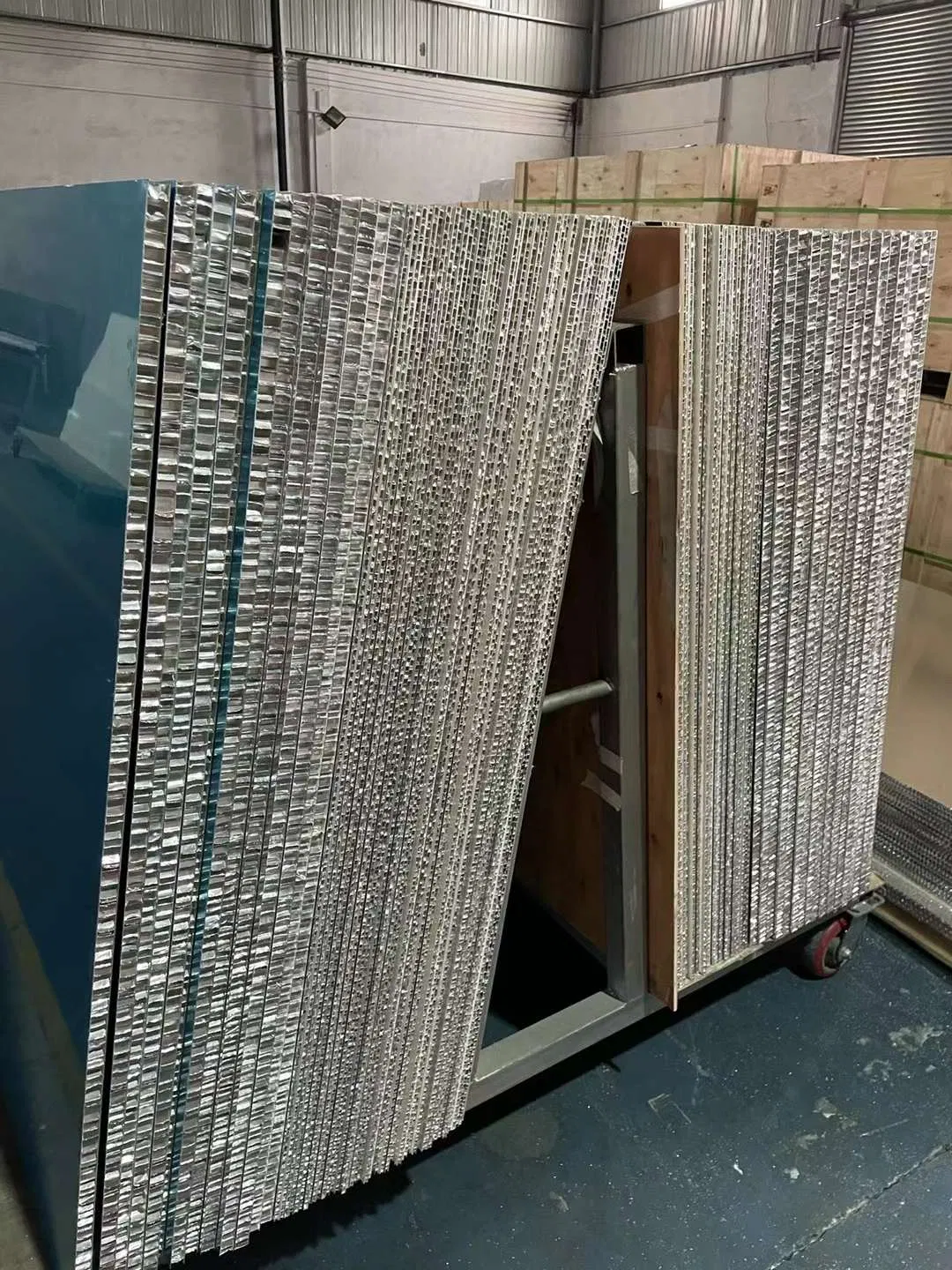

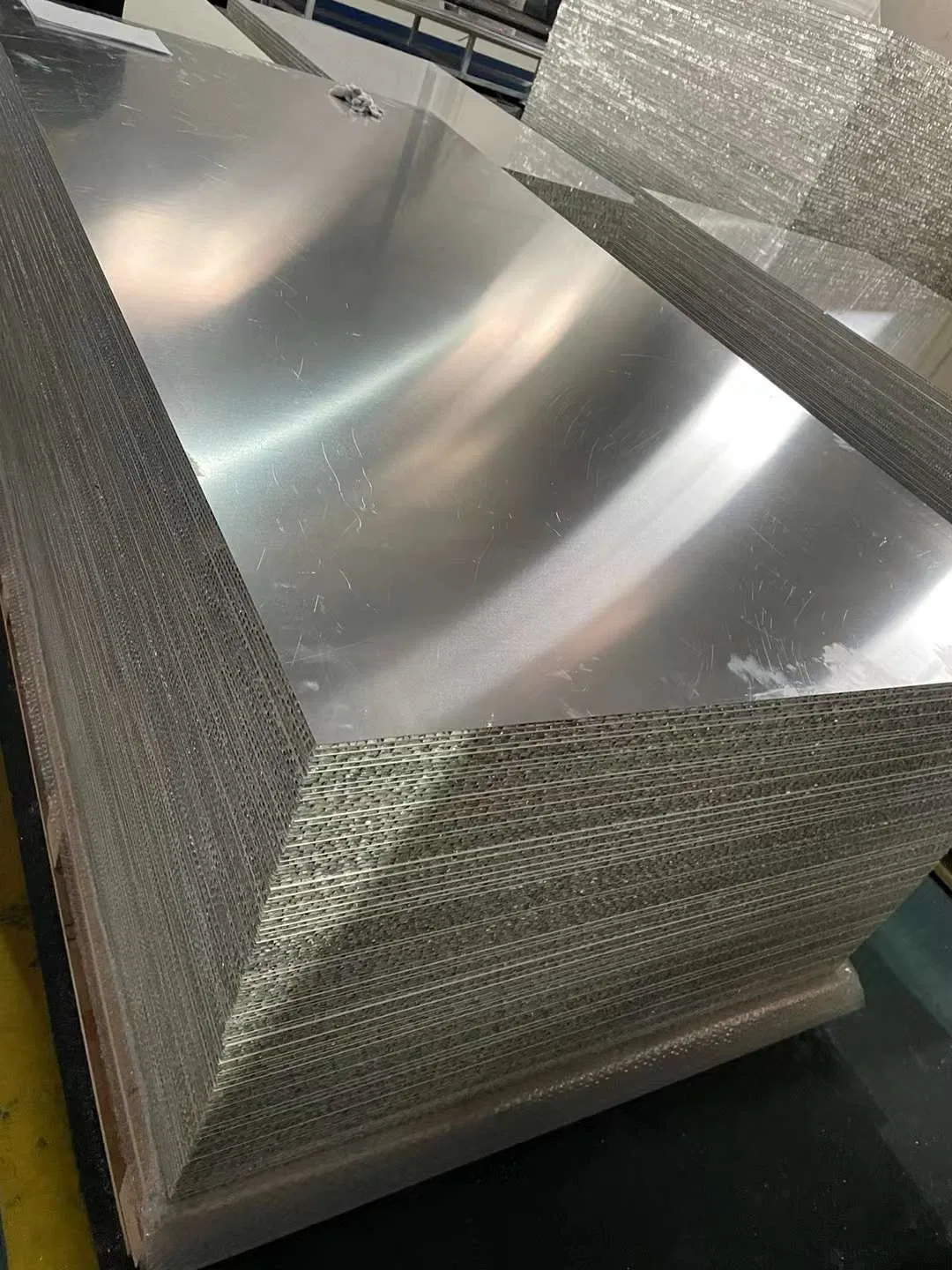

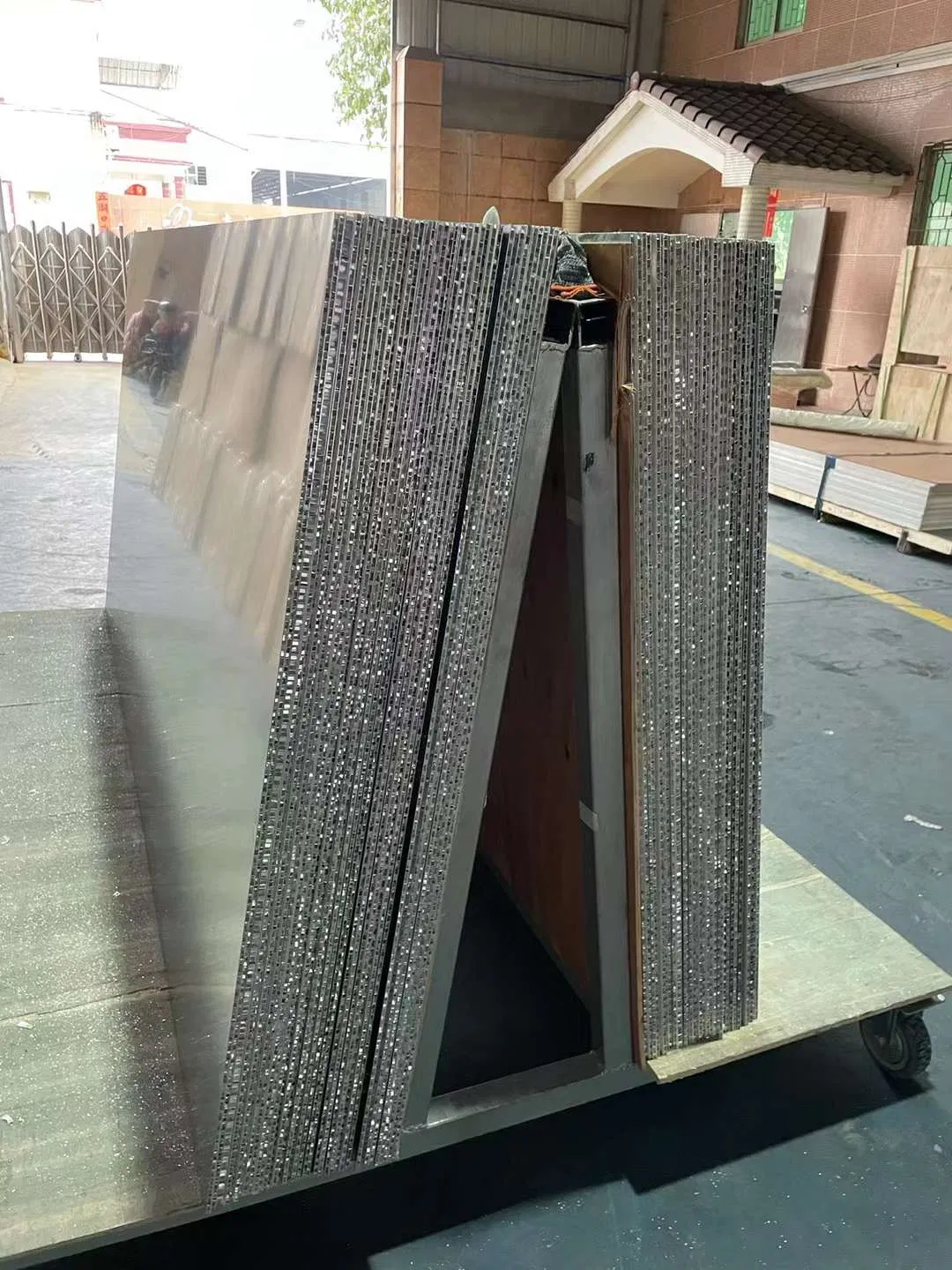

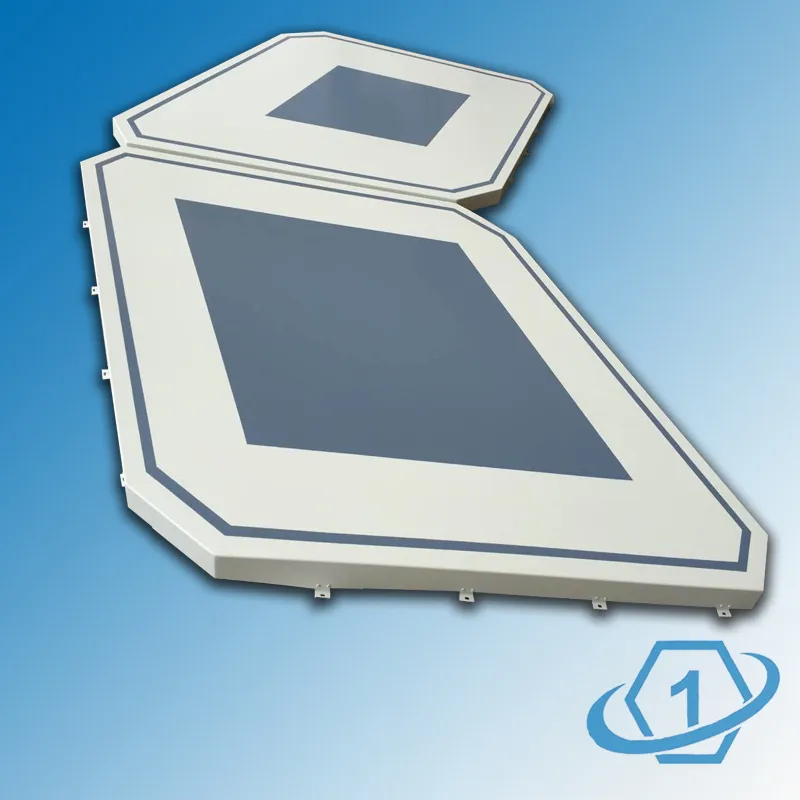

Product Showcase
Key Advantages
01. High Strength & Lightweight3.0mm plate weighs only 8kg/sqm with tensile strength of 100-280n/mm2.
02. Weather & Corrosion ResistanceFluorocarbon coating ensures 20 years of color stability under extreme conditions (-50ºC to 80ºC).
03. Superior WorkabilityCan be processed into complex shapes including plane, curved, and rich color options.
04. Self-Cleaning & Easy MaintenanceLow-viscosity fluorine film makes it difficult for pollutants to attach, allowing for easy cleaning.
05. Sound & Heat InsulationExcellent vibration absorption; can be combined with sound-absorbing cotton or rock wool.
06. 100% RecyclableEnvironmentally friendly with high recovery salvage value compared to glass or stone.
Applications & Surface Treatment

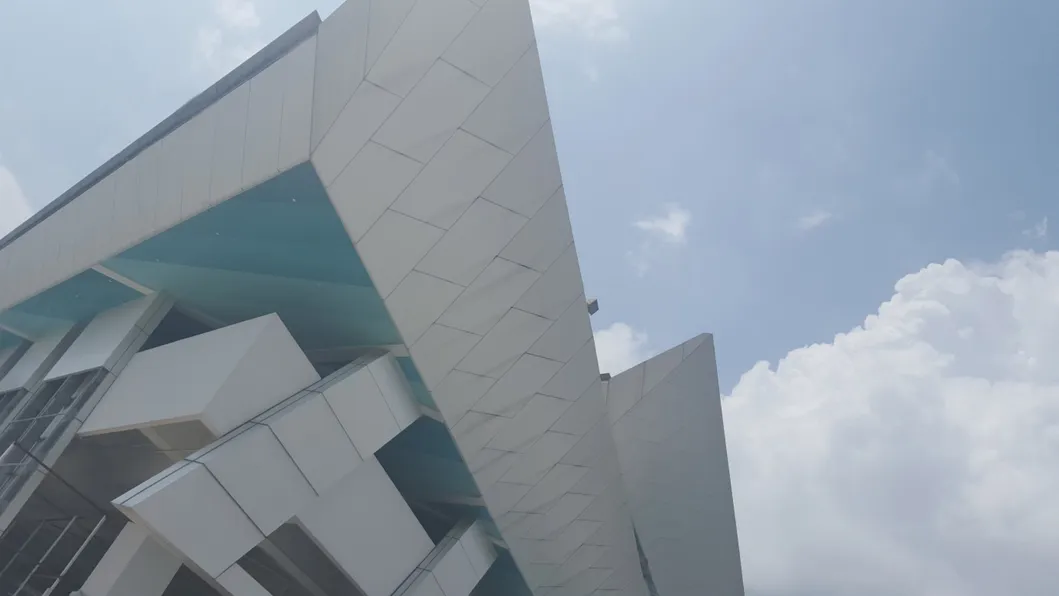

Scope: Suitable for building external/internal walls, lobby facades, column decoration, elevated corridors, pedestrian bridges, elevator edges, and advertising signs.

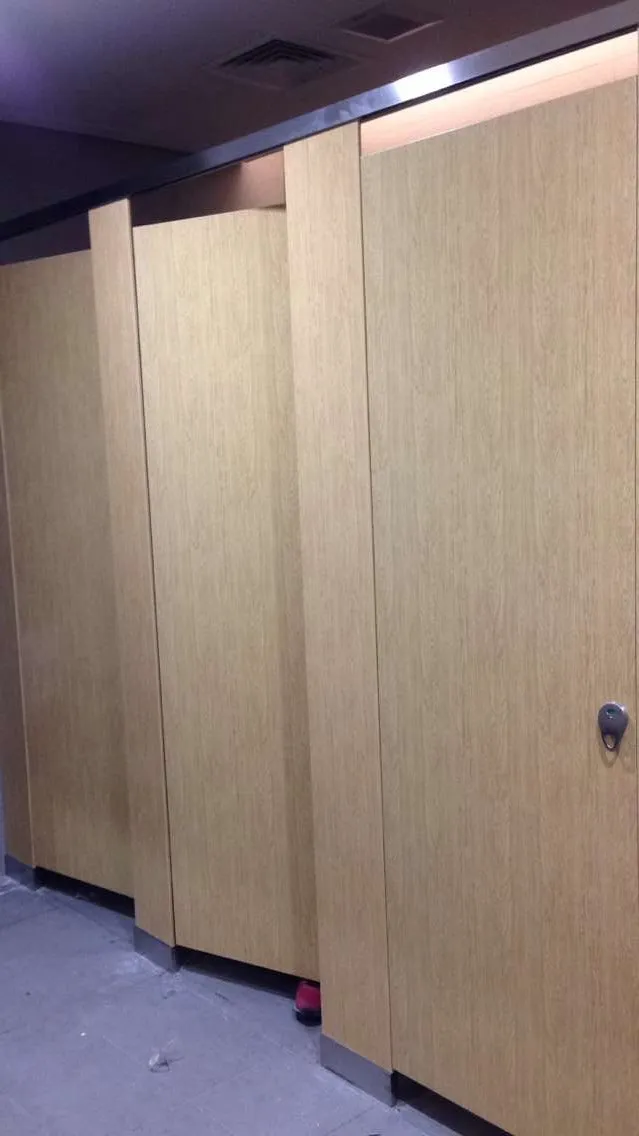

Treatments: Wood grain transfer, marble grain, PVDF, powder coating, polyester coating, and PVDF roller finishes.
Packaging and Loading
| Packaging Detail |
Wooden package, protective PE film, or customized according to client requirements. |
| Loading Detail |
1. Samples via Courier service.
2. FCL or LCL arranged based on product quantity.
3. Optimized container space usage for maximum safety and minimum cost. |
Frequently Asked Questions
Q1: What is the lifespan of the aluminum veneer panels?
We offer a 20-year quality guarantee for the surface coating, ensuring it resists fading and corrosion even in harsh outdoor environments.
Q2: Can the panels be customized to specific shapes and colors?
Yes, the panels can be processed into plane, curved, or perforated styles. Colors are fully customizable based on the RAL color system or specific client requirements.
Q3: How do these panels perform in terms of fire safety?
Aluminum veneer has excellent flame-retardant properties and does not produce toxic smoke during a fire, making it a safe choice for high-rise buildings.
Q4: Are the installation processes complicated?
No, the molding is completed in the factory. On-site construction requires no cutting; the panels are simply fixed onto the frame, making installation quick and convenient.
Q5: What are the common thicknesses used for exterior walls?
Common thicknesses for exterior applications are 2.0mm, 2.5mm, and 3.0mm, though we can provide up to 6mm depending on structural requirements.
Q6: Is the material environmentally friendly?
Yes, aluminum plates are 100% recyclable, which provides a higher salvage value and lower environmental impact compared to stone or ceramic materials.
