⚙️ Basic Information
Performance
High Intensity
Function
Cushioning Honeycomb Panel
Application
Aviation Manufacturing
Color
Granite or Marble, Customizable
Skin Thickness
0.3mm-3mm, Customizable
Surface Finish
PE/PVDF Coated, Mill Finish or Brushed
Production Capacity
100,000 Square Meters Per Month
📋 Product Specification
Aluminum AlloyA3003, A5052
Panel Thickness5mm ~ 200mm
Max Panel Size10000mm (L) * 1500mm (W)
FinishingPVDF, PE, Power coated per request
🚀 Key Features
Low density, high intensity, and stable structure
Outstanding flatness and superior weather-proofing
Excellent sound & heat insulation and shock-resistance
Easy to process, shape, and install
Green, environmental, and energy-saving material

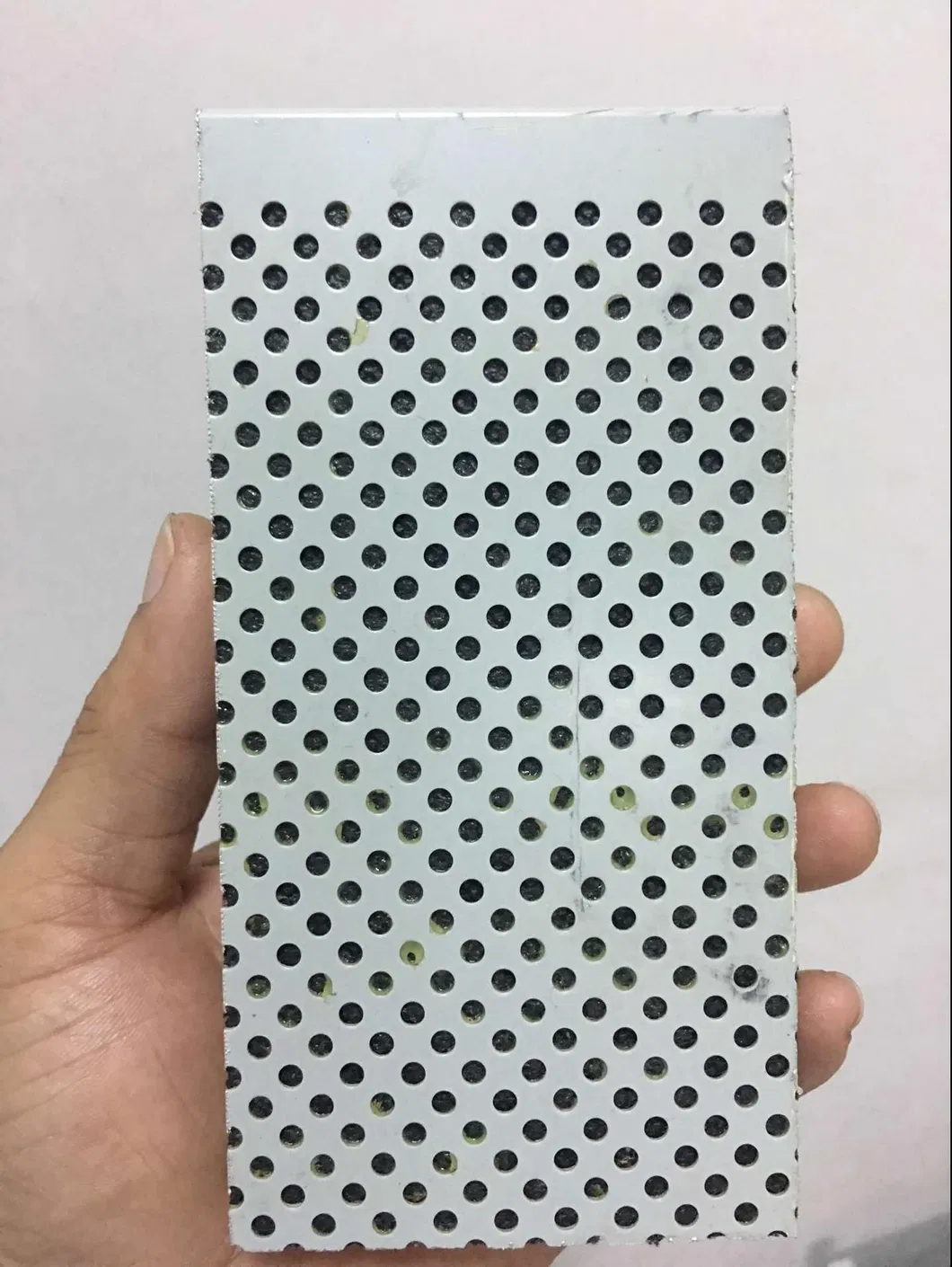

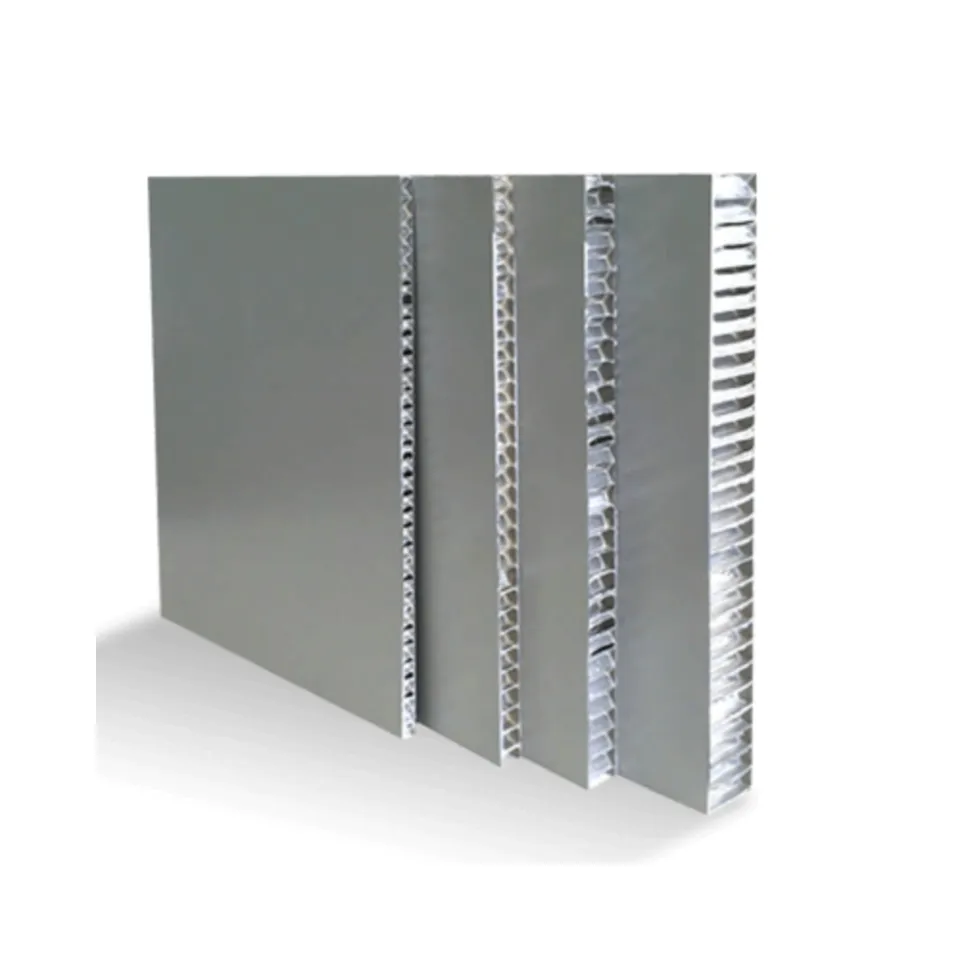

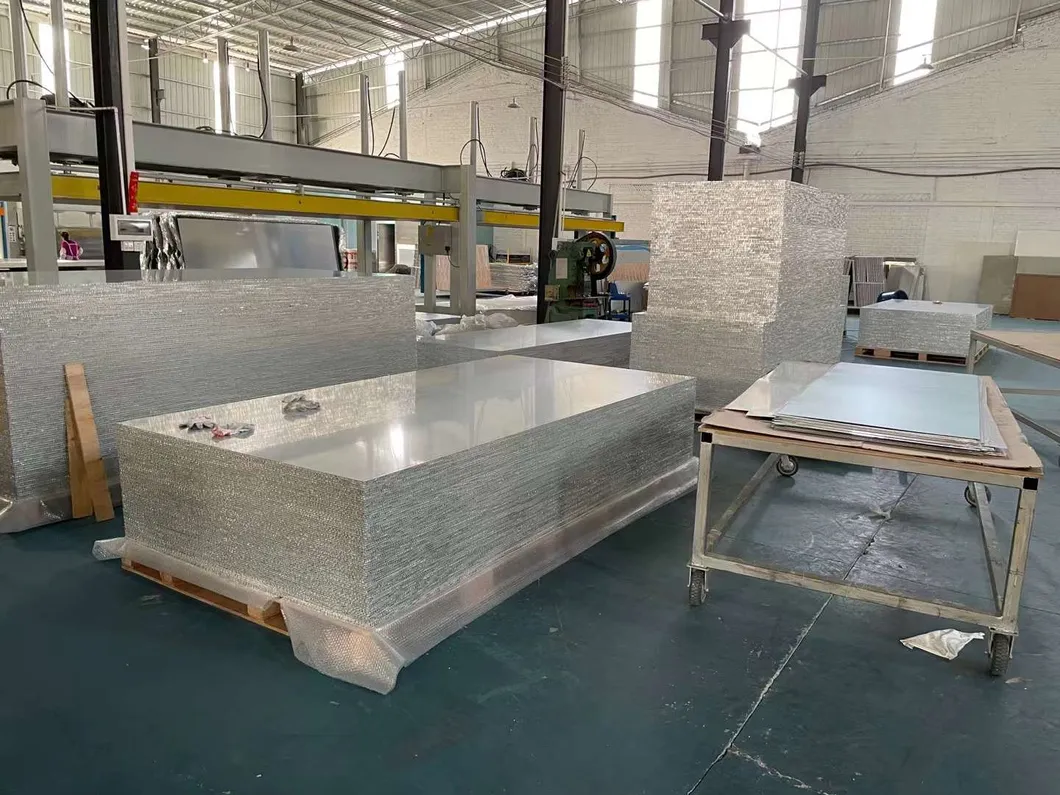

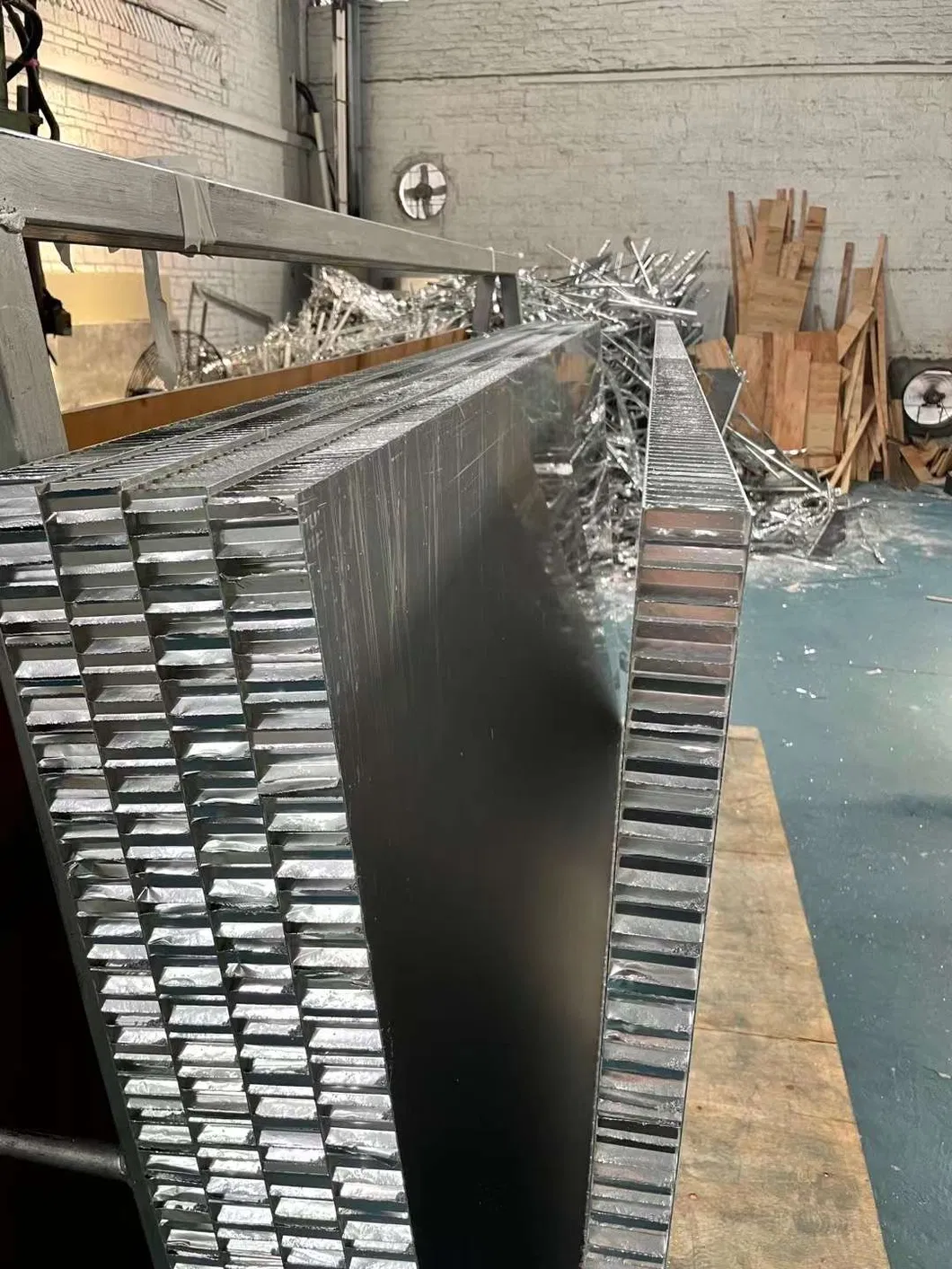

🖼️ Product Gallery
🏗️ Main Applications

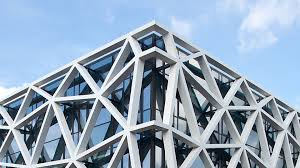

- 🔸 Building exterior and curtain walls
- 🔸 Decoration/renovation for old buildings
- 🔸 Interior walls, ceilings, and bathrooms
- 🔸 Shop door decoration
- 🔸 Advertisement boards and signboards
- 🔸 Wallboards and ceilings for tunnels
📊 Technical Data
| Property |
Unit |
6 mm |
10 mm |
15 mm |
20 mm |
25 mm |
| Cover sheet thickness (Front) | [mm] | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Cover sheet thickness (Rear) | [mm] | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 |
| Weight | [kg/m²] | 4.7 | 5.0 | 6.7 | 7.0 | 7.3 |
| Section modulus (W) | [cm³/m] | 2.6 | 4.6 | 14 | 19 | 24 |
| Rigidity (E@J) | [kNcm²/m] | 7.100 | 21.900 | 75.500 | 138.900 | 221.600 |
| Sound Insulation (Rw) | [dB] | 21 | 21 | 22 | 23 | 25 |
| Thermal Resistance (R) | [m²K/W] | 0.0063 | 0.0074 | 0.0084 | 0.0089 | 0.0093 |
❓ Frequently Asked Questions
What materials are used for these honeycomb panels?
The panels are constructed using high-quality Aluminum Alloys, specifically A3003 and A5052, ensuring high intensity and stability.
What is the range of available thickness?
We offer a wide range of panel thicknesses starting from 3mm up to 600mm, with regular stock sizes ranging from 5mm to 200mm.
Are the panels resistant to extreme weather?
Yes, these panels feature superior weather-proof, wind-proof, and pressing-proof functions, making them ideal for exterior curtain walls and roofing.
What surface finishes can I choose from?
Surface finishes include PVDF coating, PE coating, power coating, mill finish, or brushed finishes, available in various colors per international color atlases.
Do the panels provide thermal and sound insulation?
Absolutely. The honeycomb structure provides excellent sound absorption (index up to 25dB) and thermal resistance, contributing to energy saving in buildings.
Is this material environmentally friendly?
Yes, the aluminum honeycomb panel is considered a green and environmental energy-saving material, being fully recyclable and efficient.
