Office Ceiling Board Fiber Acoustic Baffle Sound Absorption Building Material

Still deciding? Get samples of $ !
Request Sample

Product Description

⚡ Basic Information
Model NO.
Ceiling Baffle
Shapes
Rectangle etc
Function
Sound-Absorption, Fireproof, Moistureproof, Heat Insu
Main Materials
Glasswool, Fiberglass Tissue
Thickness
30mm, 40mm, 50mm, 60mm, 70mm etc
Acoustic Type
Wool Acoustic Panels
Eco-Friendly
E0
Fireproof Grade
A1
Warranty
5 Years
Capacity
200,000 Pieces/Year
📦 Product Description

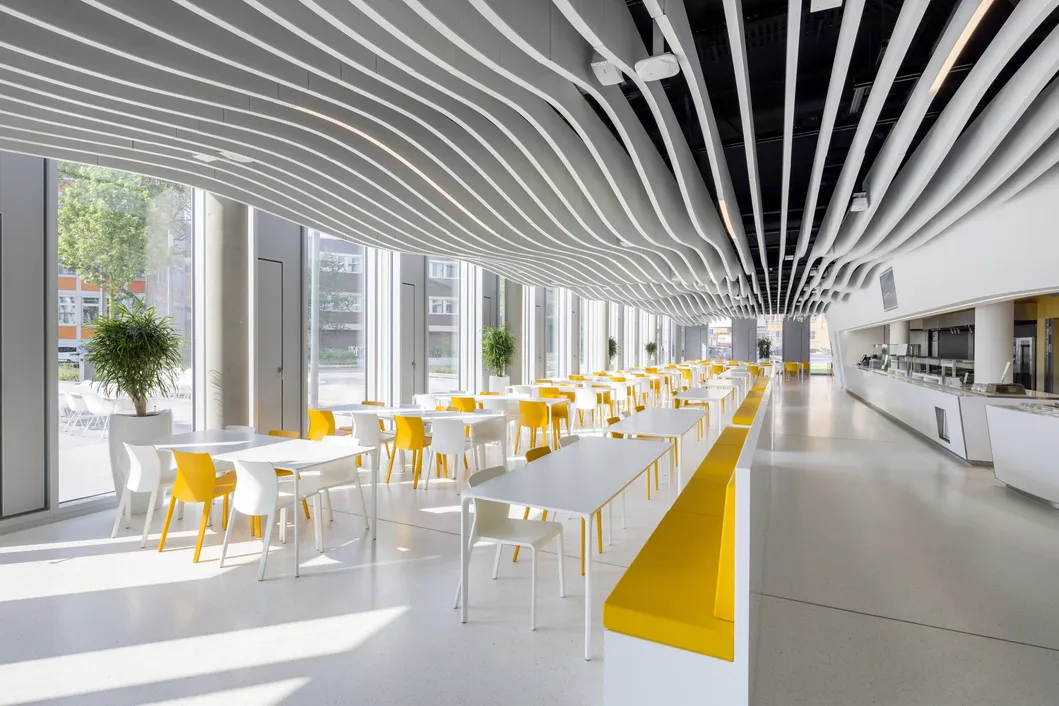

Acoustic Ceiling Baffle

1. Acoustic Ceiling Baffles - 1200x200mm

Size: 1200x200x40mm | Weight: 1.3kg/pcs
Manufactured from high density glass wool with fiberglass felt on all sides. Edges are straight cut and wrapped by fiberglass felt. These baffles are a tasteful option for reducing reverberations and improving intelligibility in any space.

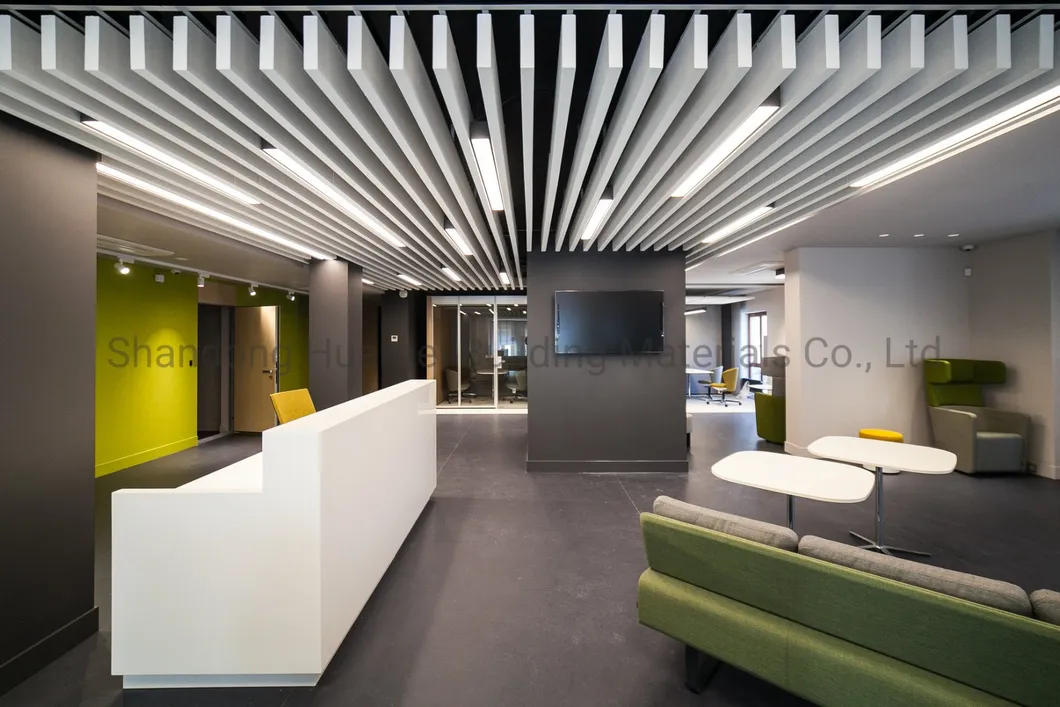

Sound Absorption Baffle

2. Acoustic Ceiling Baffles - 1200x300mm

Size: 1200x300x40mm | Weight: 1.8kg/pcs
High density glass wool construction. The range of unique shapes and sizes offers architects and designers creative, bold, and architecturally pleasing solutions.

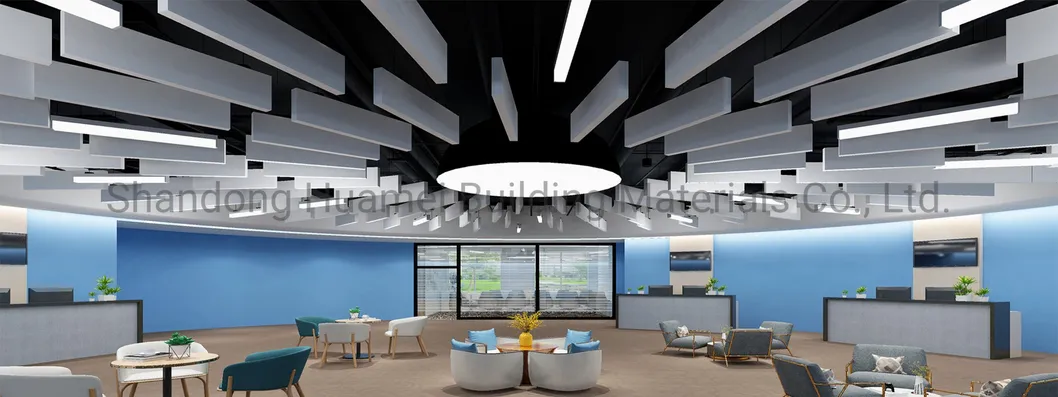

Creative Ceiling Baffles

3. Acoustic Ceiling Baffles - 1200x400mm

Size: 1200x400x40mm | Weight: 2.4kg/pcs
Laboratory tested for performance (NRC 0.9) and fire safety (Class-A1 rating by SGS). Safe for use in all types of professional installations.

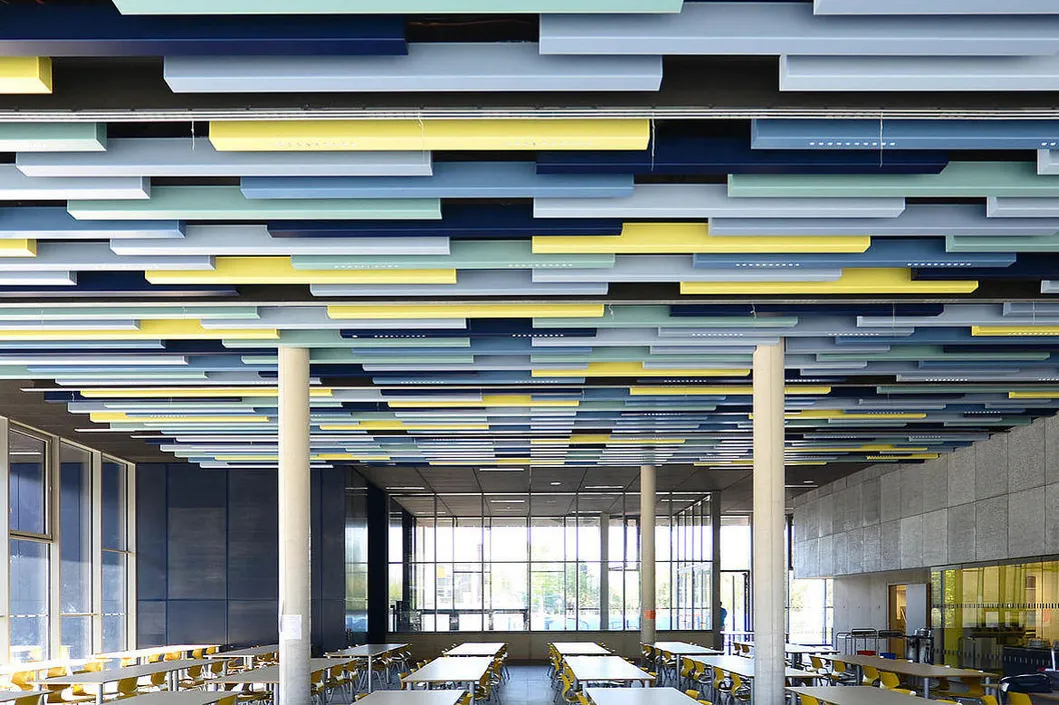

SGS Rated Acoustic Baffles
📐 Shapes & Customization

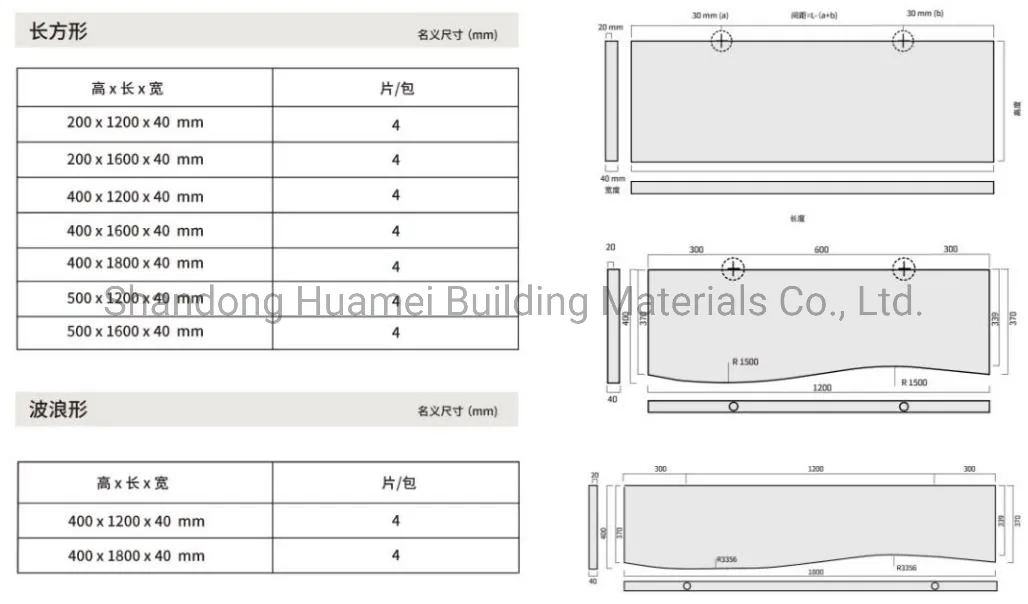

Ceiling Baffle Shapes
🛠️ Installation Guide

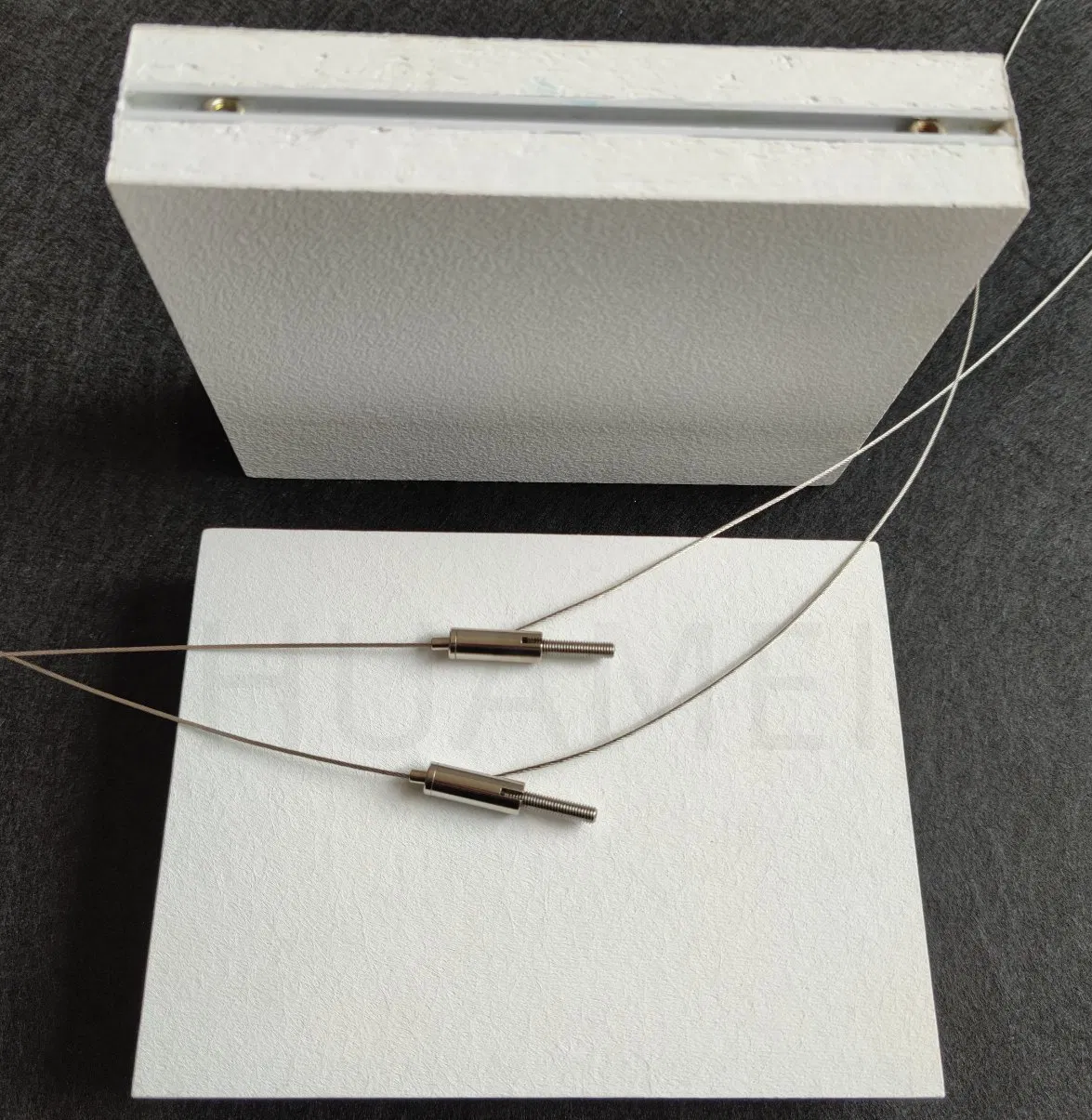

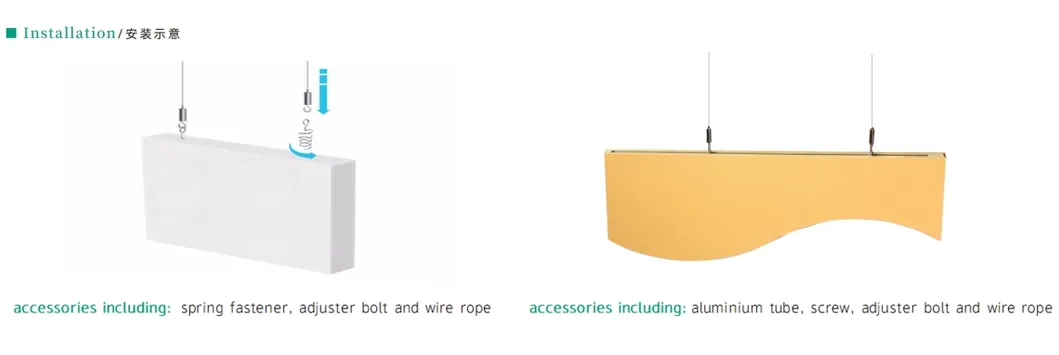

The suspension accessories are composed of spiral spring, 2m cable, and adjusting hook.

Installation 1

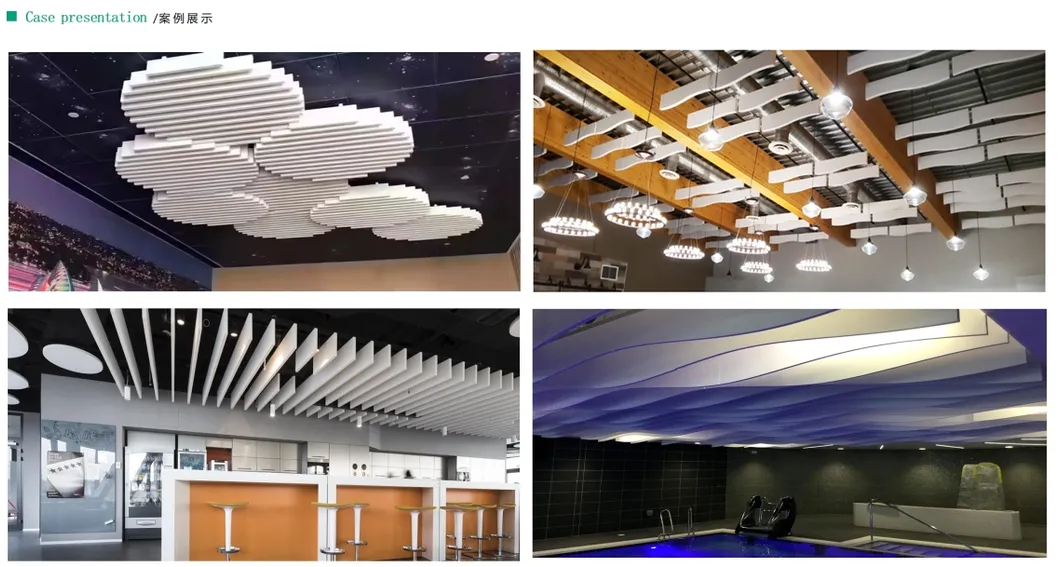

Installation 2
🎨 Color Options

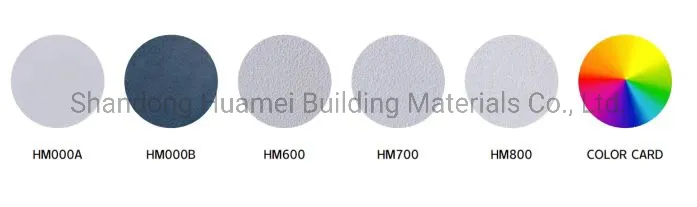

Baffle Colors
📊 Technical Specifications
Main materialsHigh density glasswool and fiberglass tissue
Surface finishingSpecial painted laminated with decorative fiberglass tissue
Surface designsWhite plane / white point / black plane or other colors
NRC0.8-0.9 (ENISO354:2003 ENISO11654:1997)
Fire-ResistantClass A1 (EN13501-1:2007+A1:2009)
Thermal-Resistant≥0.4(m².k)/W
HumidityStable with RH up to 95% at 40°C
Moisture rate≤1%
Light Reflectivity0.85
Density120-130kg/cbm
🏭 Factory & Production

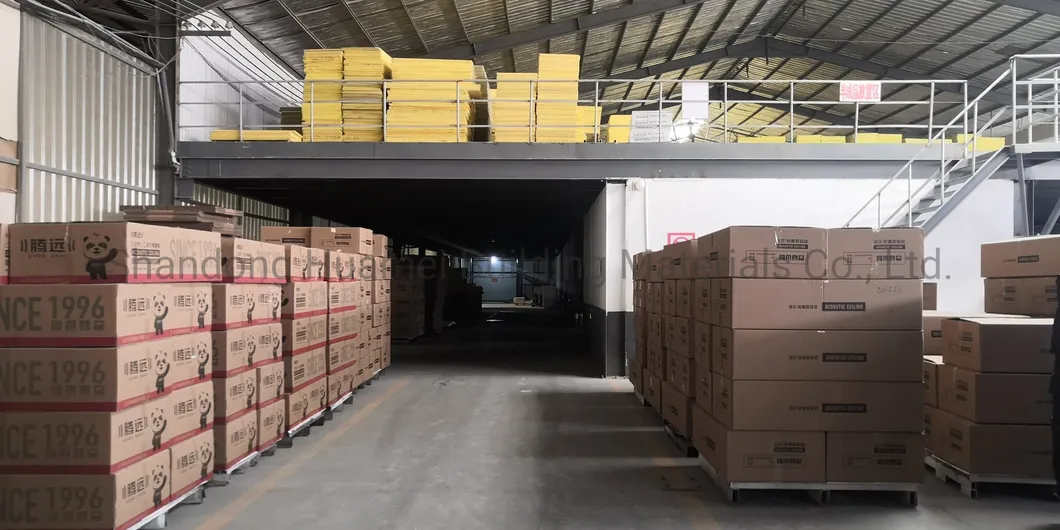

Production Factory

Specialized in research, development, and production of ceiling and wall decoration products with nearly 20 years of history. Annual production capacity reaches 5 million square meters, with products exported globally to Europe, America, Middle East, and Southeast Asia.

📜 Certification & Global Reach
Certificates
Global Customers
❓ Frequently Asked Questions
Q1: What materials are the acoustic ceiling baffles made of?
A: The baffles are manufactured from high-density glass wool with a fiberglass felt wrap on all sides for optimal sound performance.
Q2: How effective are these panels at absorbing sound?
A: These panels have an NRC (Noise Reduction Coefficient) rating of 0.8 to 0.9, making them highly efficient at capturing ambient energy and reducing echoes.
Q3: Are the baffles fire-resistant?
A: Yes, they achieve the most stringent Class-A1 fire safety rating as tested by SGS, ensuring they are safe for all commercial and public installations.
Q4: Can they be used in humid environments?
A: Absolutely. They are dimensionally stable in environments with relative humidity up to 95% at 40°C, resisting sagging, warping, or delaminating.
Q5: What sizes and thicknesses are available?
A: Standard sizes include 1200x200mm, 1200x300mm, and 1200x400mm. Thicknesses range from 30mm to 70mm, and custom sizes are also available.
Q6: What is included in the installation kit?
A: The suspension system typically includes spiral springs, 2-meter cables, and adjustable hooks for easy and precise mounting.
