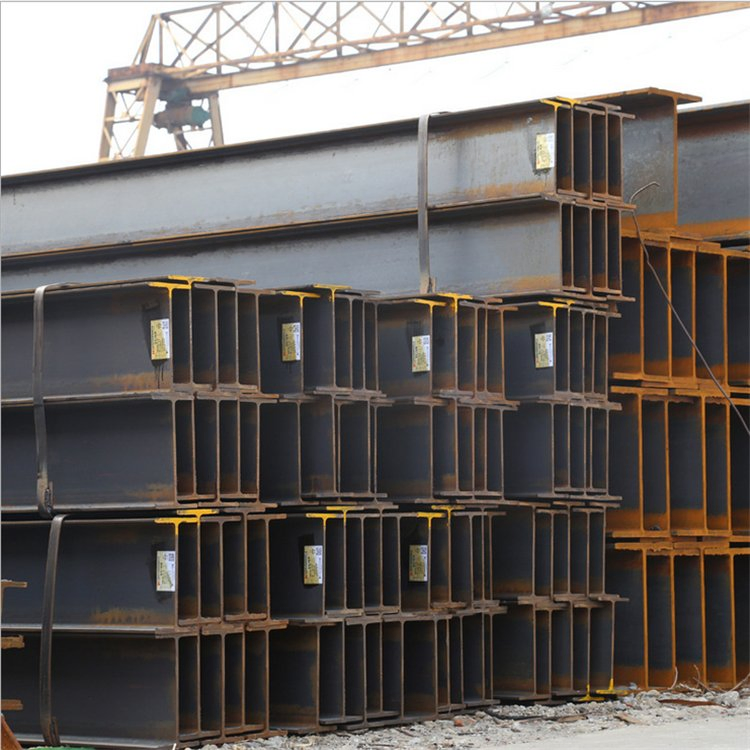

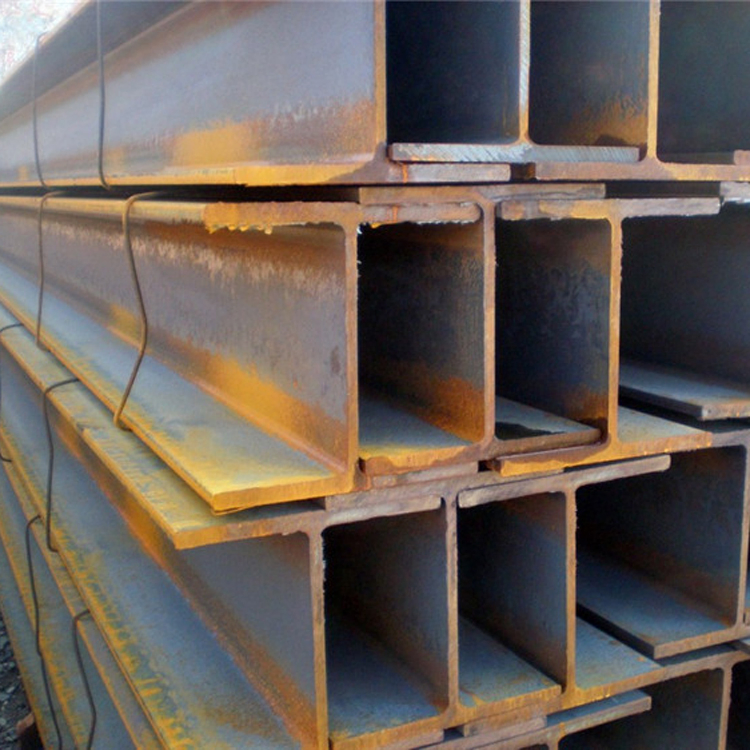

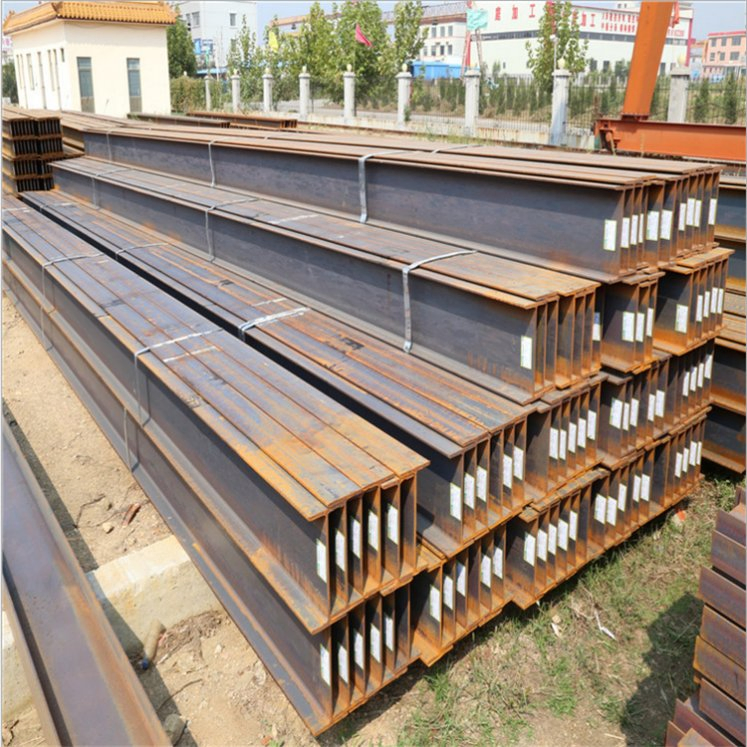

H Beams Steel Structural Construction Project Materials

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Material
Steel Structure
Usage
Warehouse, Dormitories, Workshop
Customized
Available
Thickness
33-56mm
Grade
Q235
Function
Structure Building
Flange Width
30-400mm
Web Thickness
4-55mm
Surface Treatment
Galvanized, Coated or Custom
Technique
Hot Rolled
Length
6m or Custom
Item Type
Steel H Beam
Transport Package
Packed by Steel Strip
Specification
GB, ASTM, AISI
Production Capacity
5000 Tons/ Month

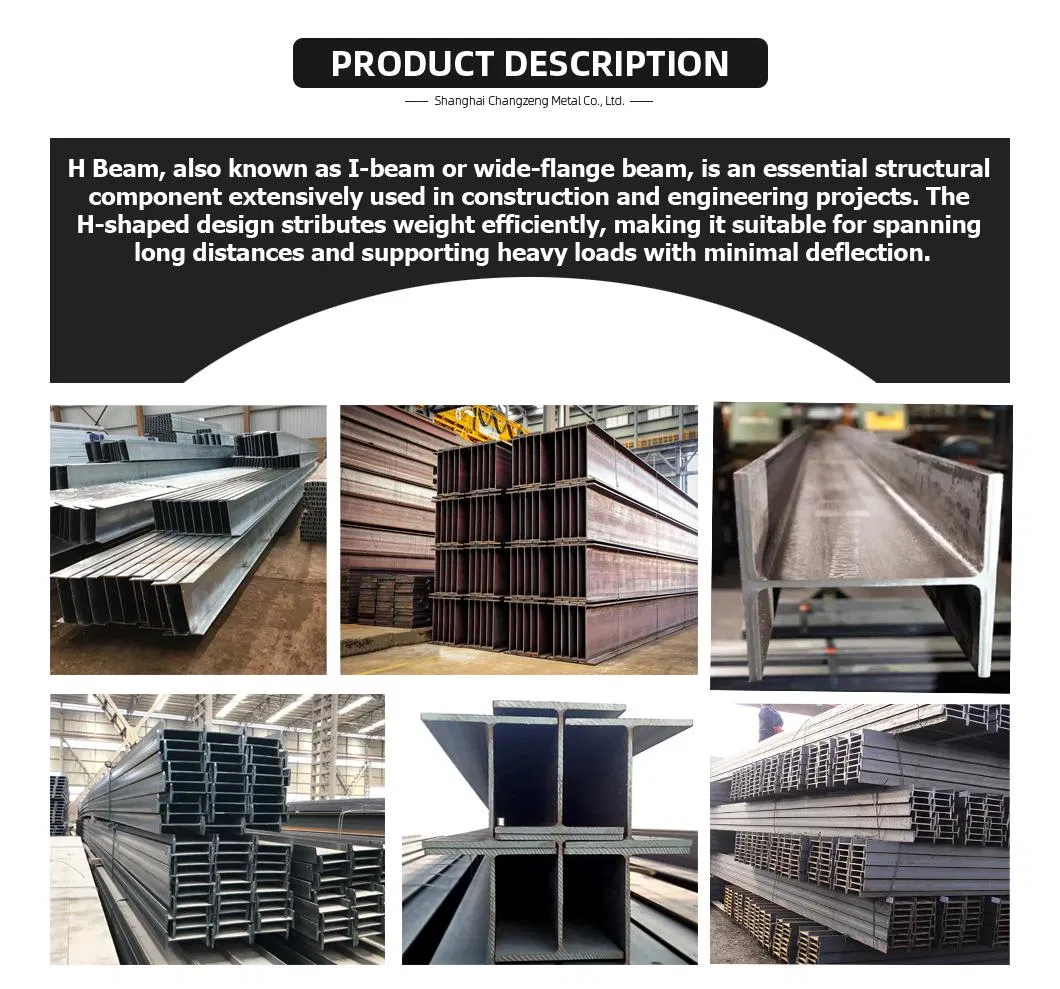

Product Description
H Beams Steel Structural Construction Project Materials H Beams Steel Structural Construction Project Materials
Technical Specifications
Product NameH-beam
GradeQ235B SM490 SS400 Q345B G300 G350 S275JR S355JR
StandardGB ASTM, JIS, SUS, DIN, EN etc
TechniqueHot rolled/Cold rolled
SizeCustomized according to customer needs
ApplicationCivil and Industrial Building Structures
PackageExport standard packing
ShapeH
Delivery timeAbout 7- 15 days
Trade termFOB CFR CIF
Payment30%T/T Advance + 70% Balance before shipment
MOQ5 TONS
Place of OriginChina
Product Size & Theoretical Weight

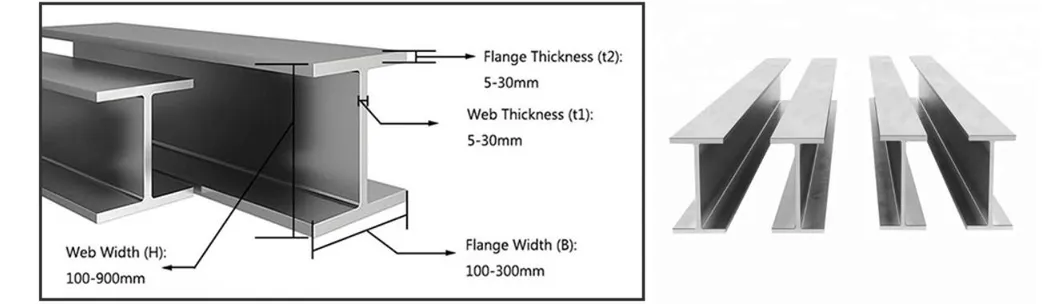

Size (MM) h*b*tw*t Weight (KG/M) Size (MM) h*b*tw*t Weight (KG/M)
100*50*5*79.54300*150*6.5*937.3
100*100*6*817.2294*302*12*1285.0
125*60*6*813.3300*300*10*1594.5
125*125*6.5*923.8300*305*15*15106.0
148*100*6*921.4338*351*13*13106.0
150*75*5*714.3340*250*9*1479.7
150*150*7*1031.9344*354*16*16131.0
175*90*5*818.2346*174*6*941.8
175*175*7.5*1140.3350*175*7*1150.0
194*150*6*931.2344*348*10*16115.0
198*99*4.5*718.5350*350*12*19137.0
200*100*5.5*821.7388*402*15*15141.0
200*200*8*1250.5390*300*10*16107.0
200*204*12*1272.28394*398*11*18147.0
244*175*7*1144.1400*150*8*1355.8
244*252*11*1164.4396*199*7*1156.7
248*124*5*825.8400*200*8*1366.0
250*125*6*929.7400*400*13*21172.0
250*250*9*1472.4400*408*21*21197.0
250*255*14*1482.2414*405*18*28233.0

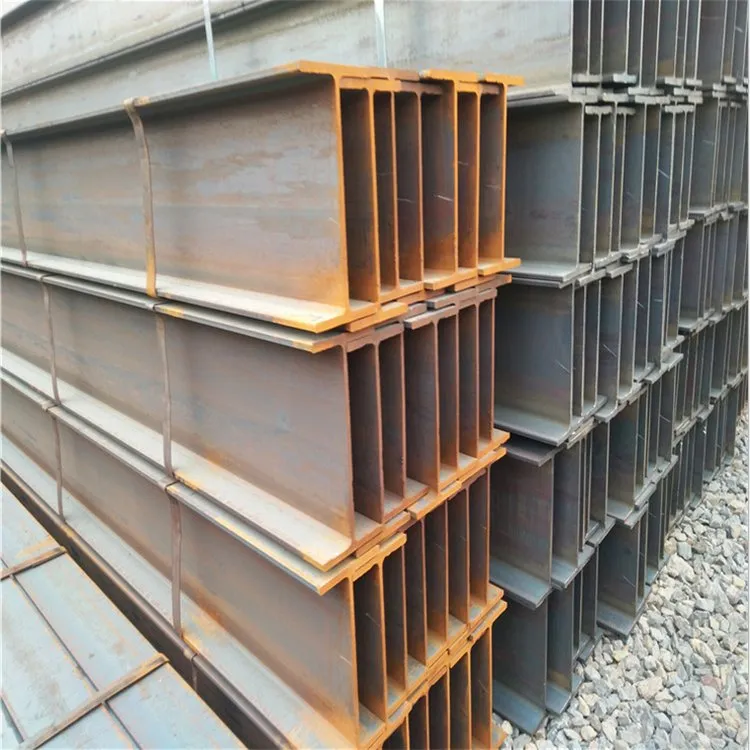

Product Gallery

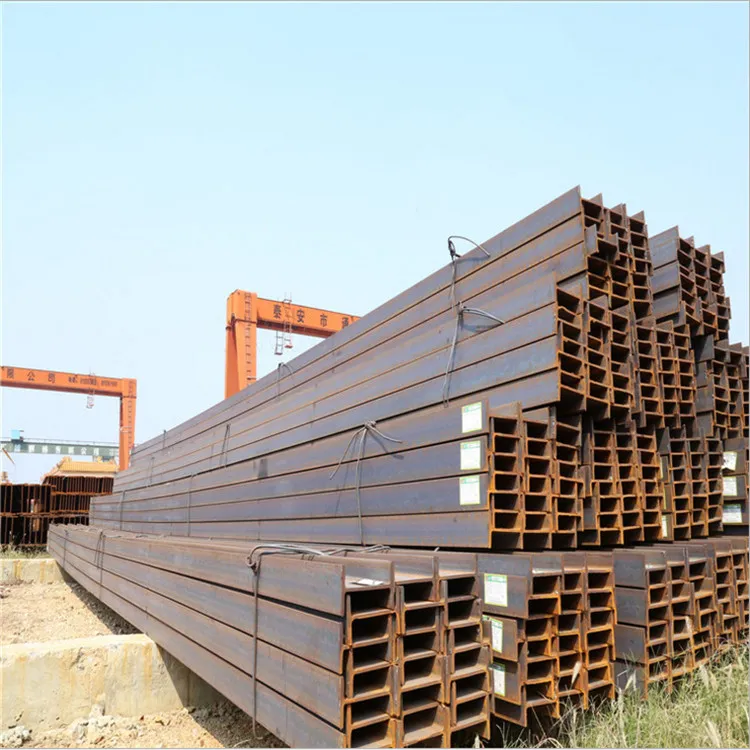

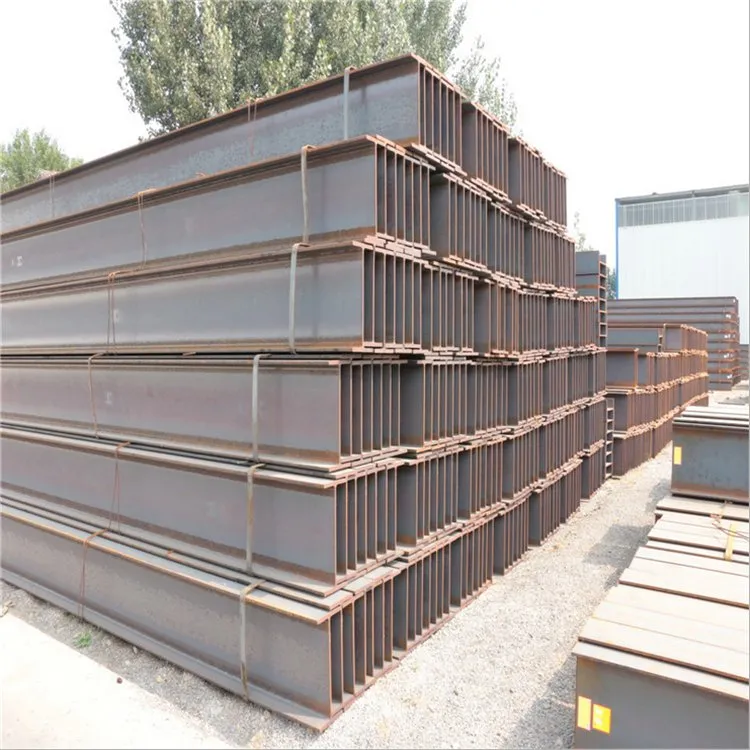

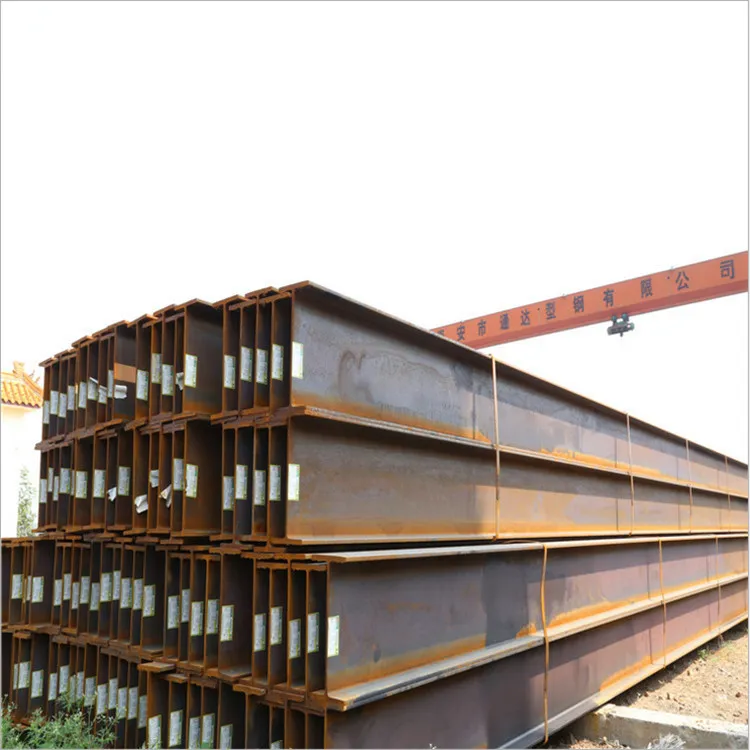

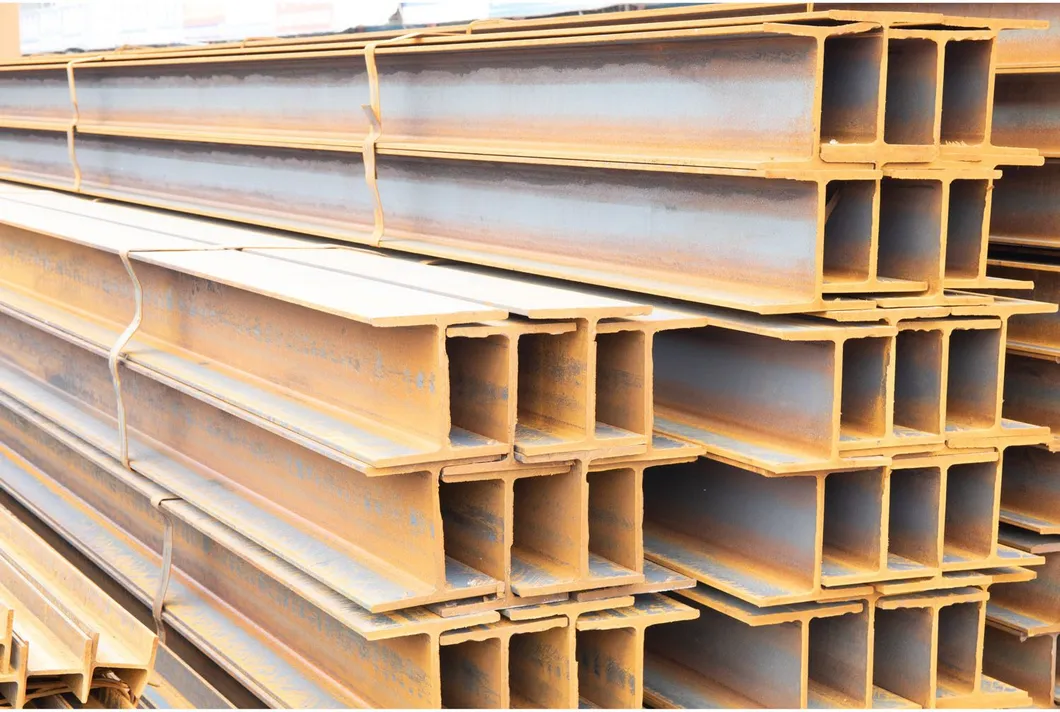

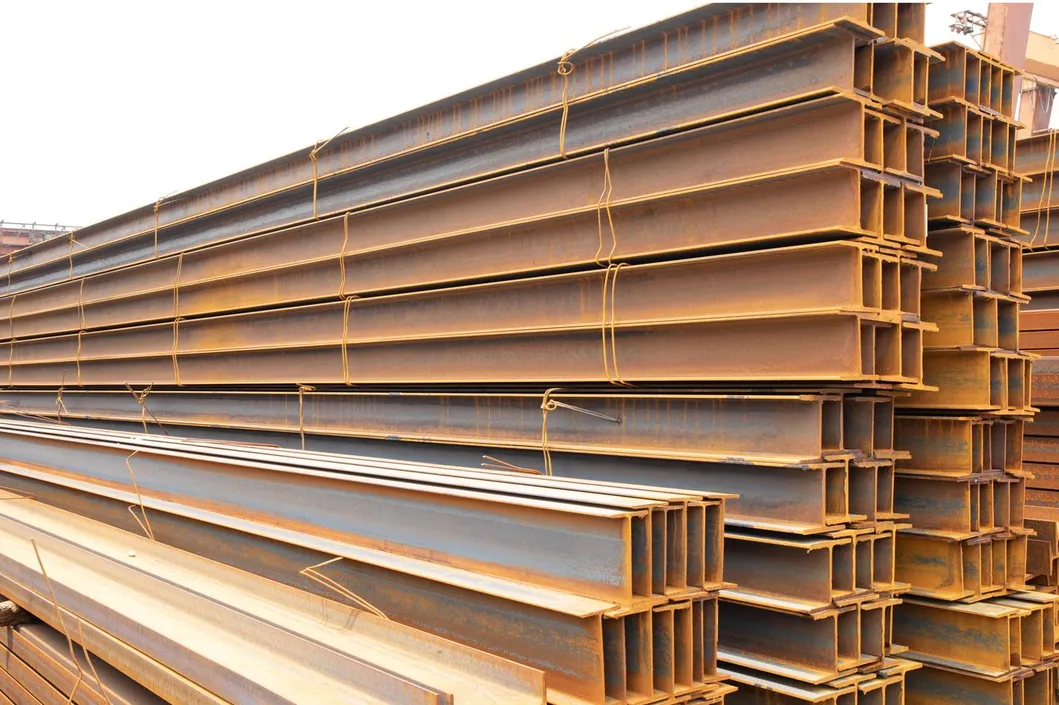

H Beam Gallery
H Beam Gallery
H Beam Gallery
H Beam Gallery
H Beam Gallery
H Beam Gallery

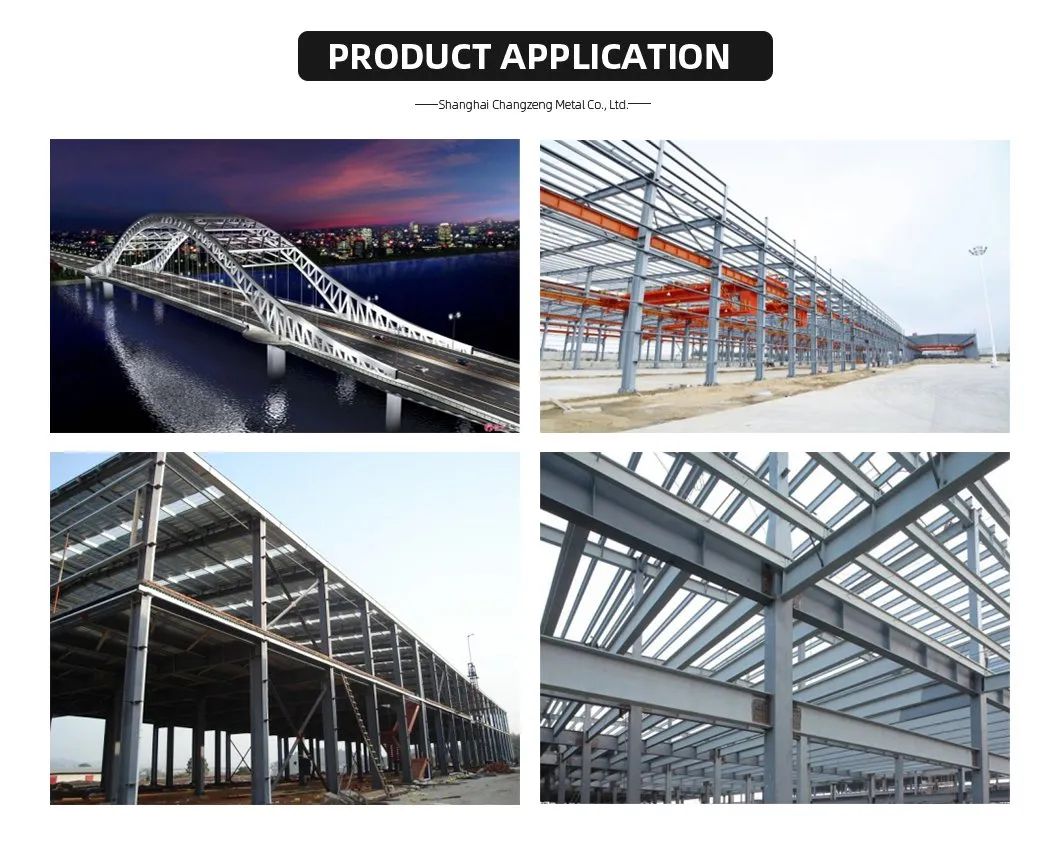

Project Application & Materials
Structural Construction Structural Construction

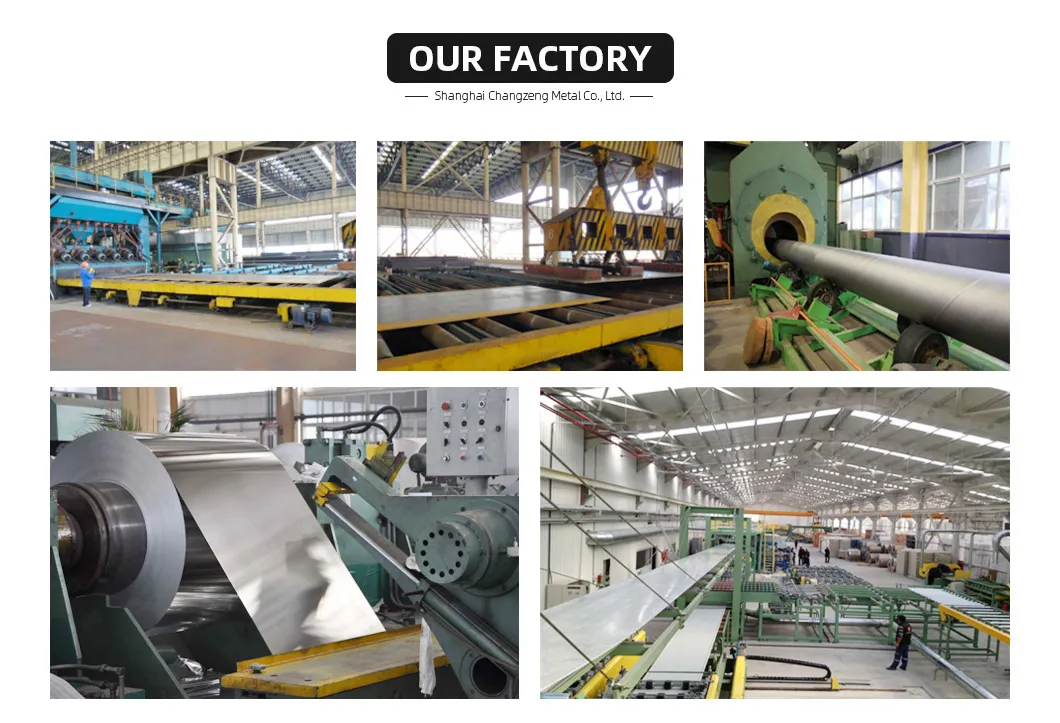

Material Detail
Material Detail
Material Detail
H Beams Construction H Beams Construction H Beams Construction H Beams Construction H Beams Construction
Frequently Asked Questions
What are the primary uses for Steel H-Beams?
H-Beams are widely used in civil and industrial building structures, including warehouses, dormitories, workshops, and large-scale steel structural construction projects.
What steel grades are available for these beams?
We offer a variety of grades including Q235B, Q345B, SM490, SS400, G300, G350, S275JR, and S355JR to meet different structural requirements.
Can the size and length of the H-Beam be customized?
Yes, both the dimensions (h*b*tw*t) and the length (standard 6m or custom) can be tailored according to specific customer needs and project designs.
What surface treatments are provided?
The beams can be provided with various surface treatments including galvanized, coated, or other custom finishes to enhance durability and corrosion resistance.
What is the standard delivery time and MOQ?
The typical delivery time is approximately 7 to 15 days. The Minimum Order Quantity (MOQ) is 5 tons.
What international standards do your products follow?
Our products comply with several international standards including GB, ASTM, JIS, SUS, DIN, and EN to ensure global quality compliance.
