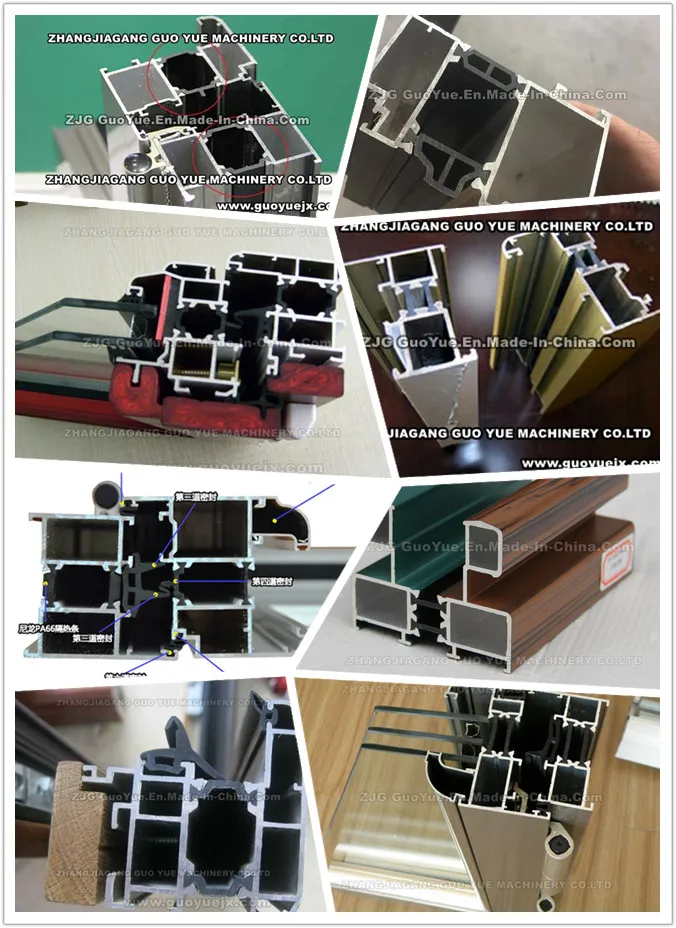

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

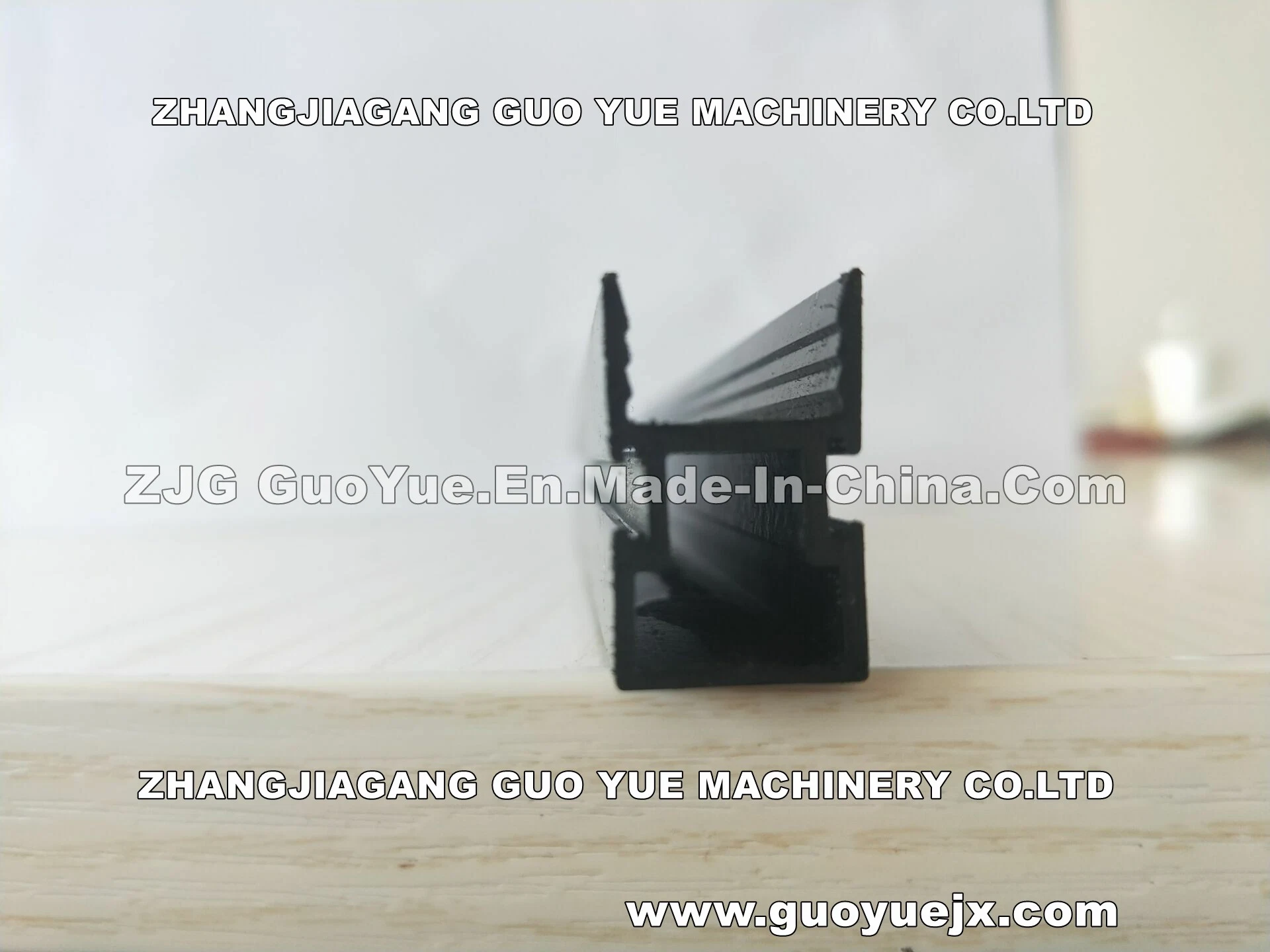

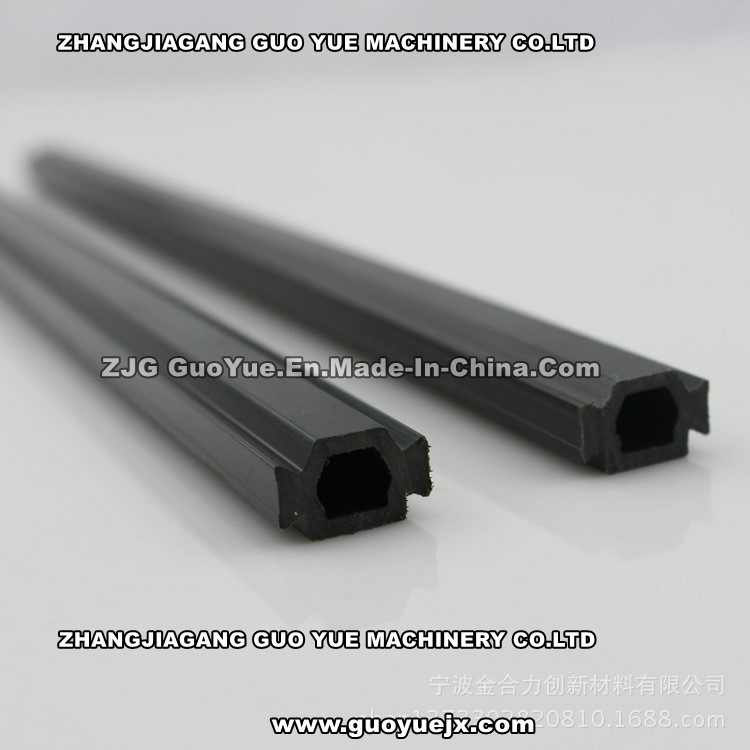

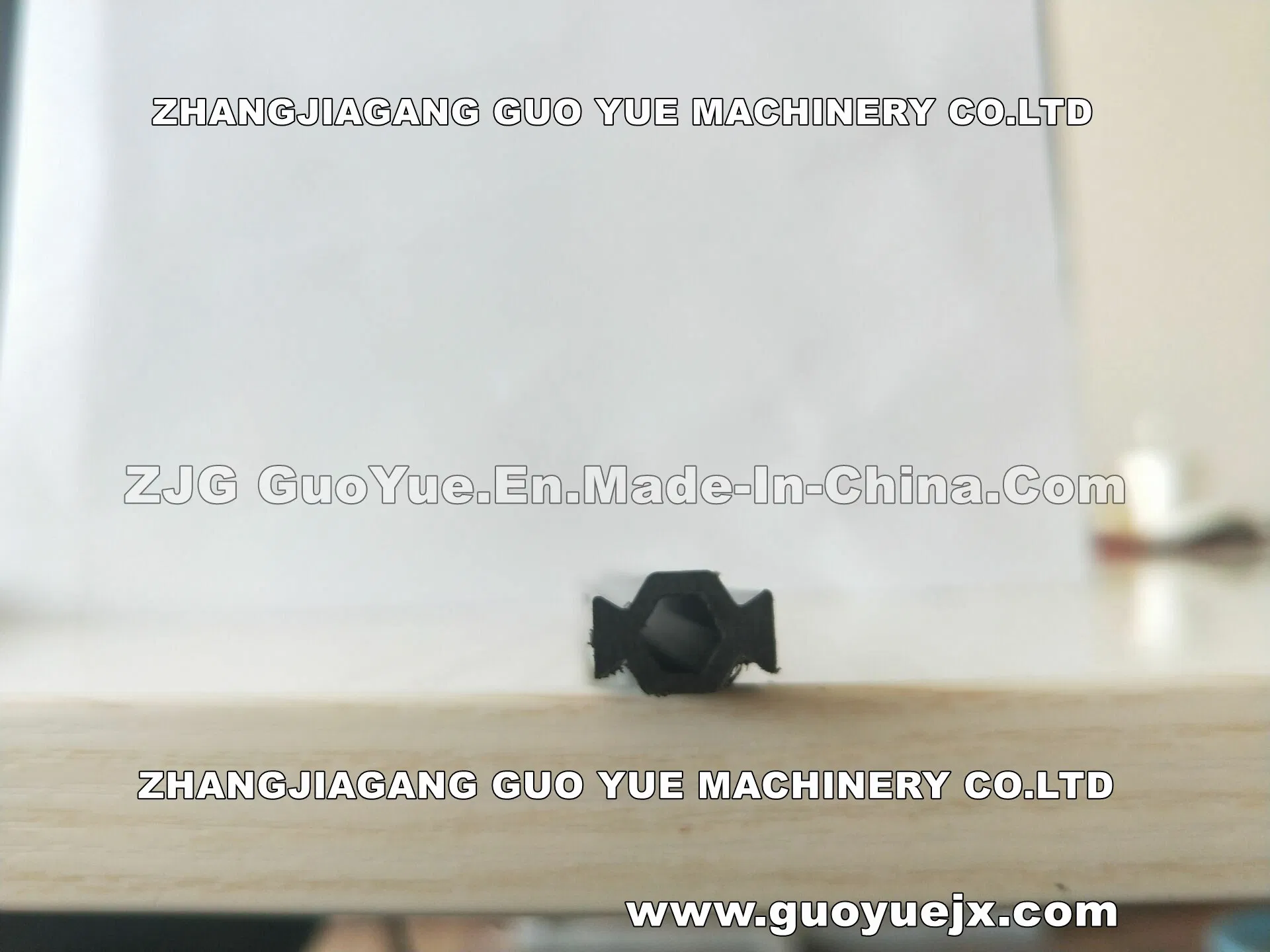

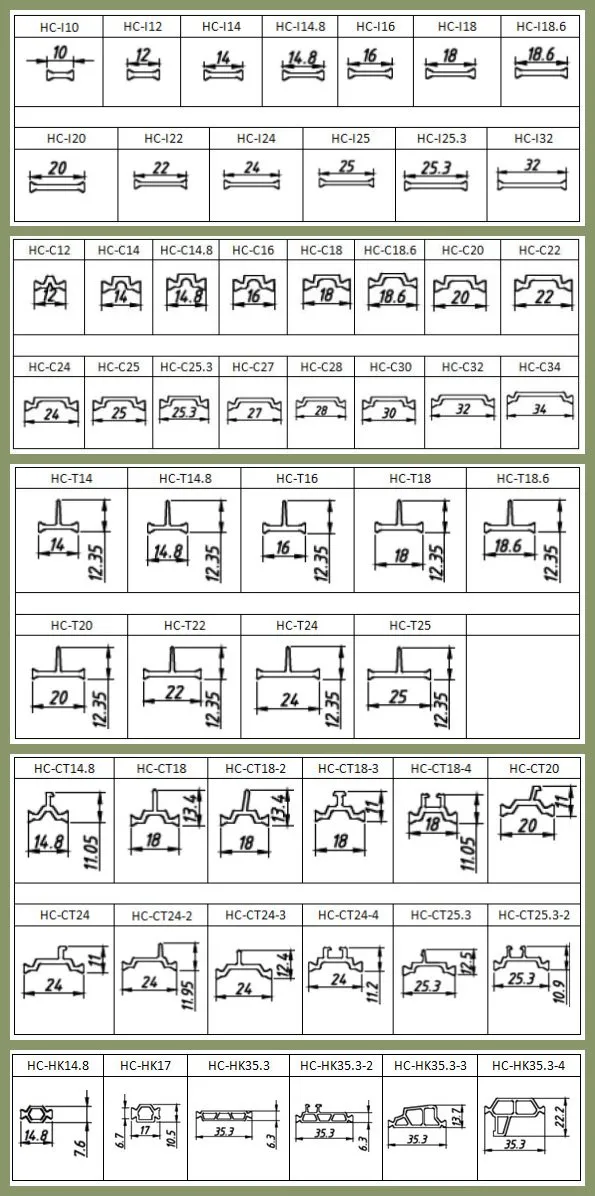

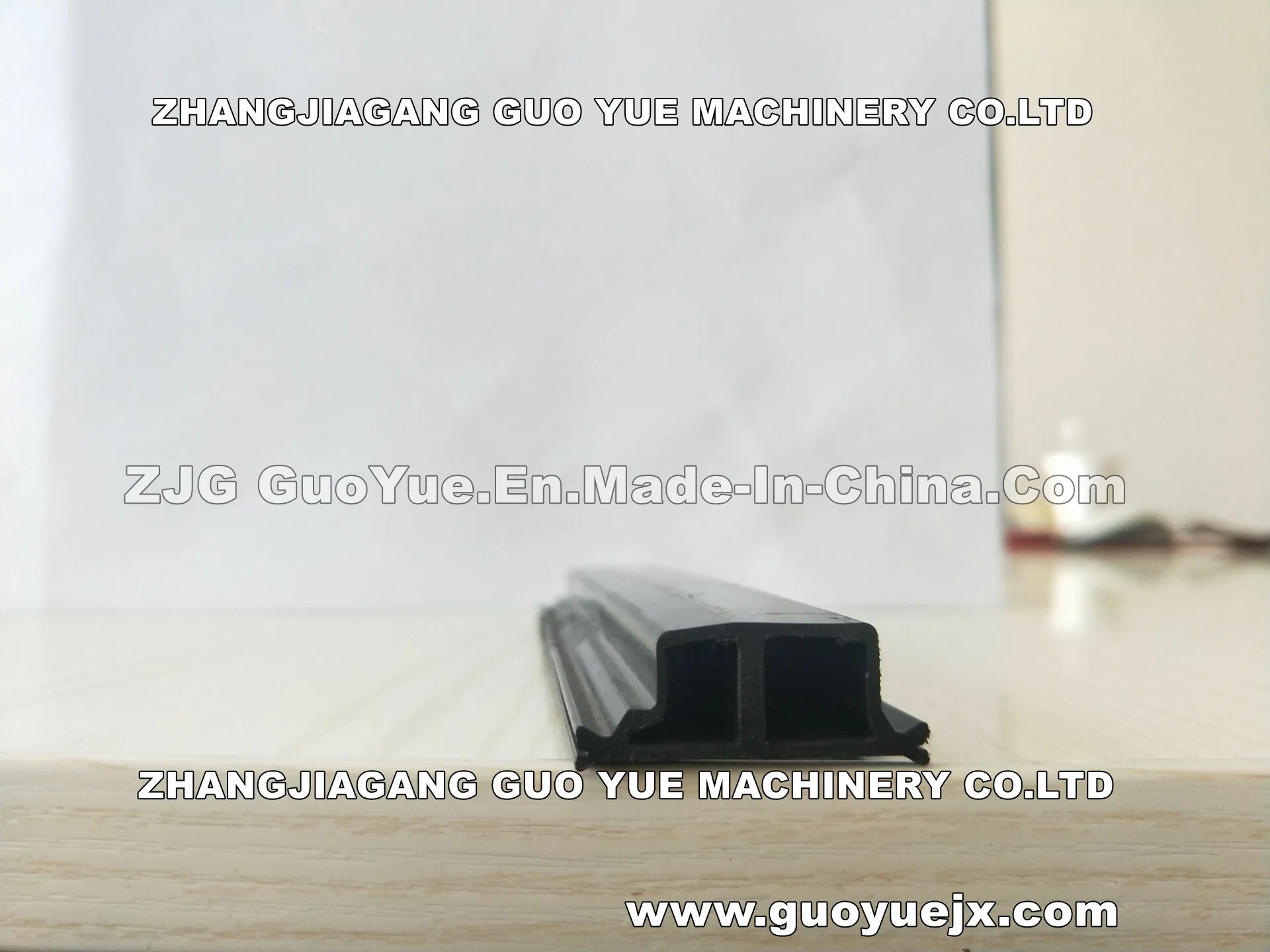

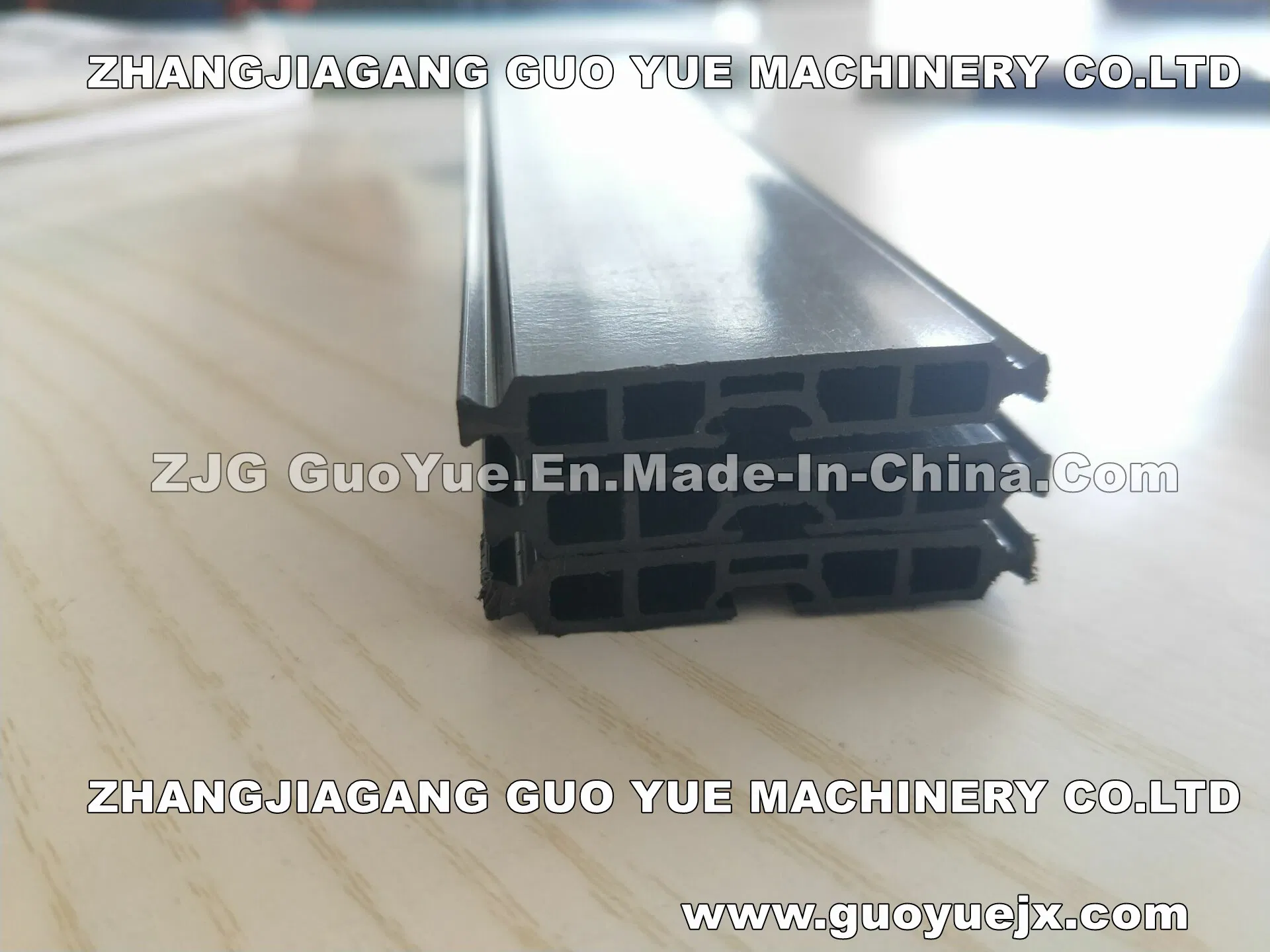

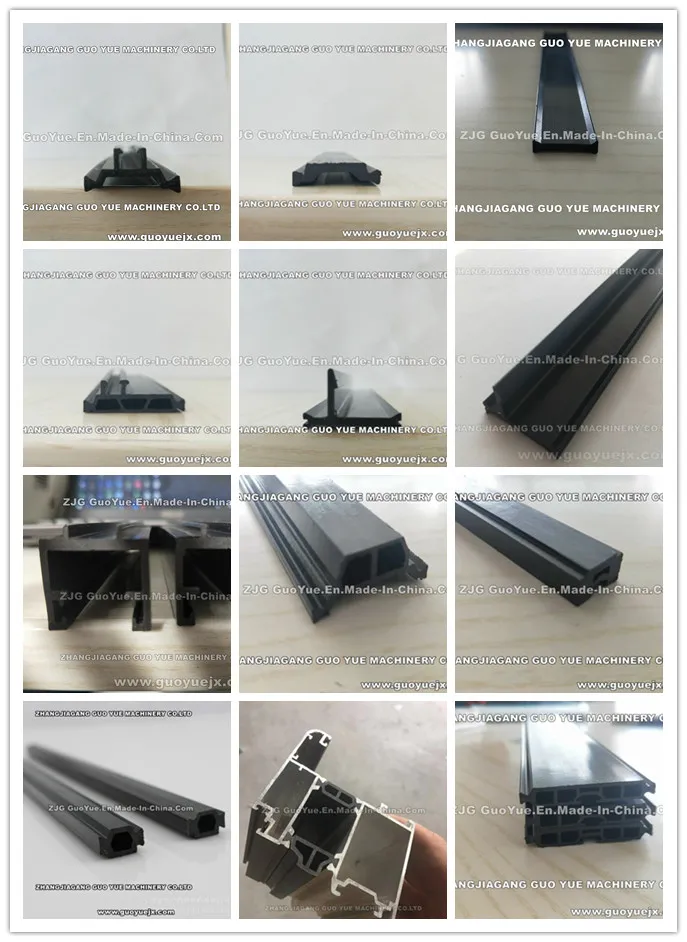

Shape I, shape C, shape T, shape CT and shape HK is the most common shape, we can also according to customer requirements or drawings to customize other special shape.
| NO. | Item | Unit | Standard (GB/T 23615.1) | Technical Spec |
|---|---|---|---|---|
| 1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
| 3 | Vicat softening temperature | ºC | ≥230ºC | ≥233ºC |
| 4 | Melting point(0.45MPa) | ºC | ≥240ºC | ≥240 |
| 5 | Tensile cracks test | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥82 |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
*Sample water content less than 0.2% by weight. Laboratory condition: (23±2)ºC and (50±10)% relative humidity.
Storage: The strips should be stored in a ventilated and dry environment, horizontally placed. Keep away from heat sources, water, heavy pressure, acids, and alkalis.
Delivery: Production capacity of 100,000 meters per day. Standard specifications ship in 15-20 working days after deposit.

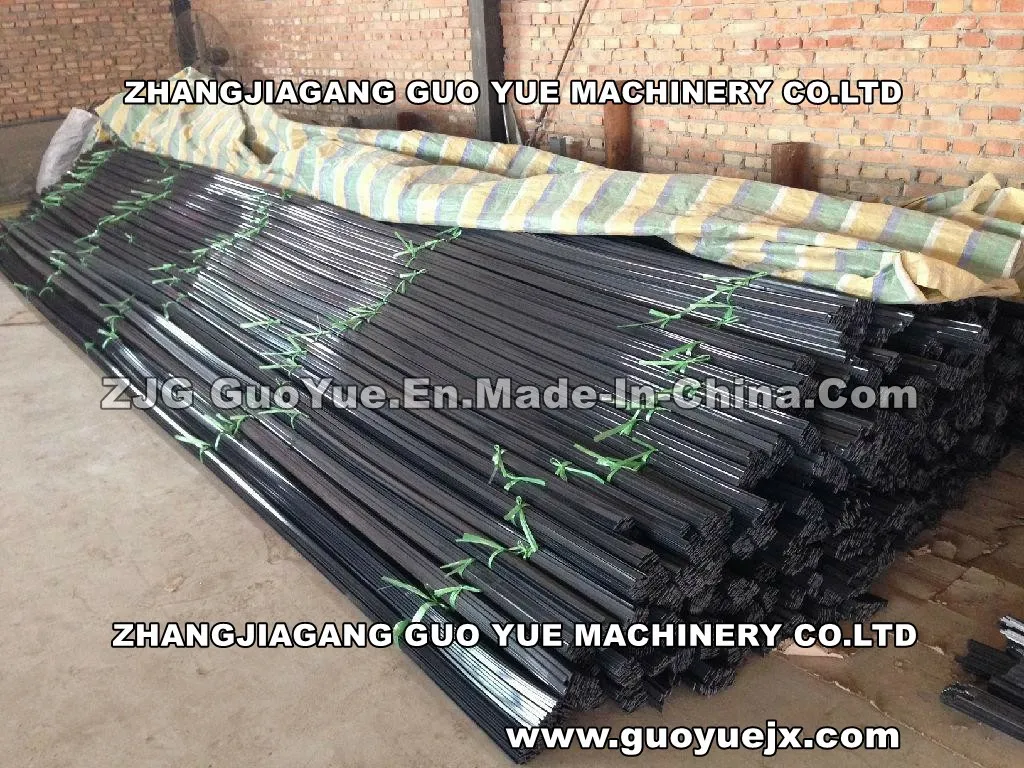

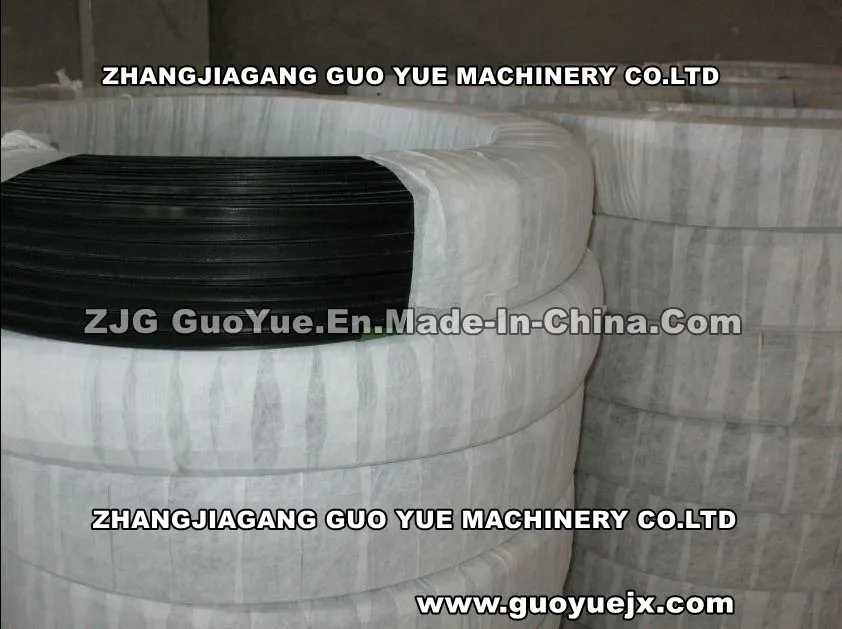

Available in linear packaging (standard 6 meters or customized) or rolls (400-600 meters/roll) for specific shapes like "I" and "C".
