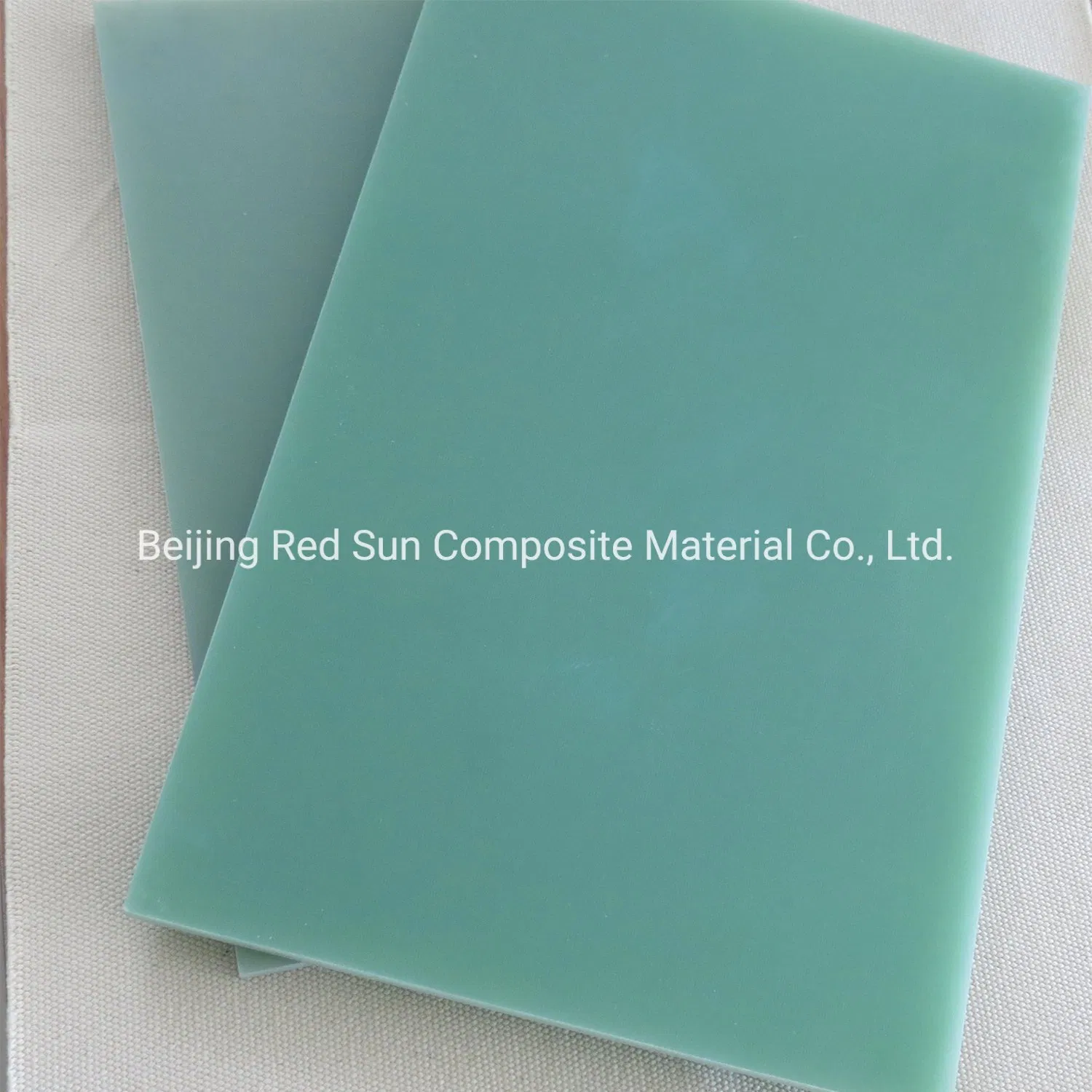

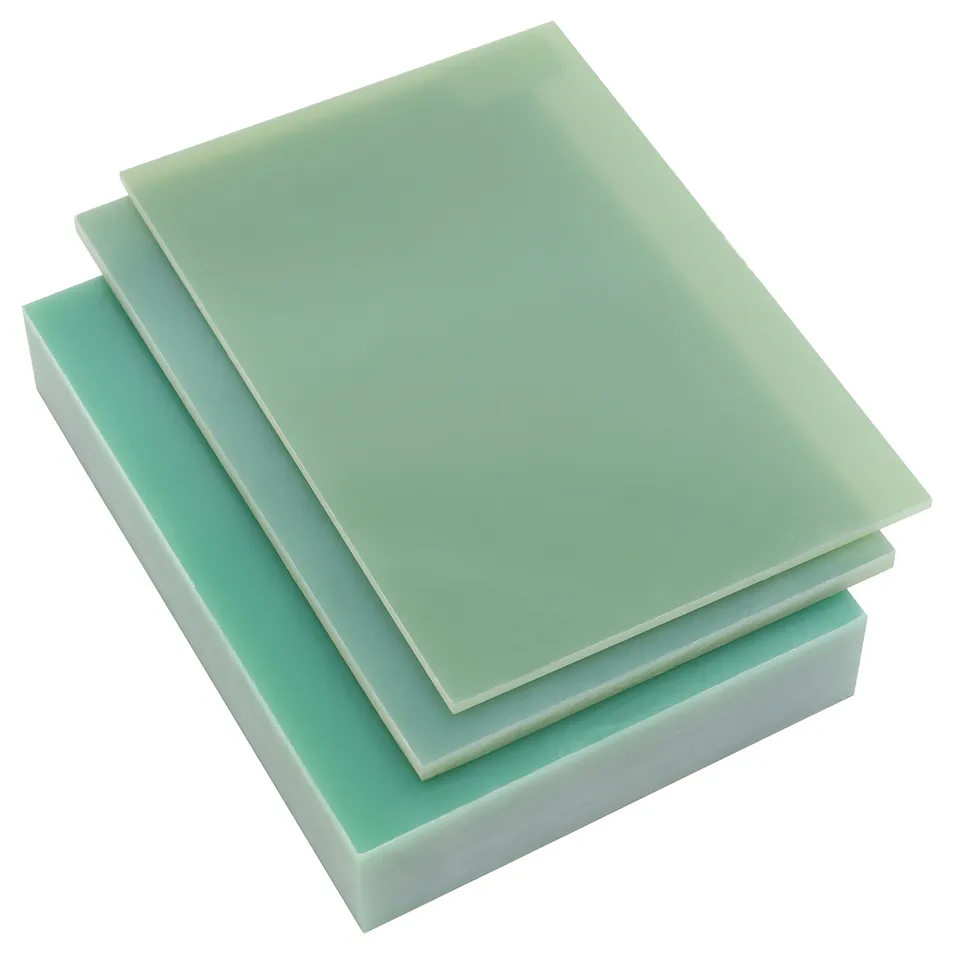

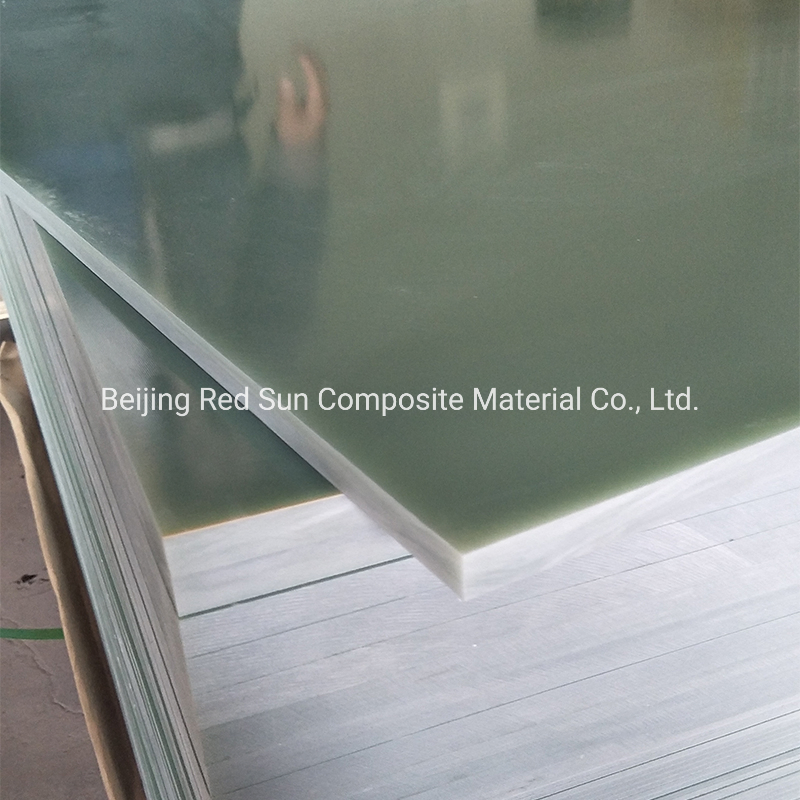

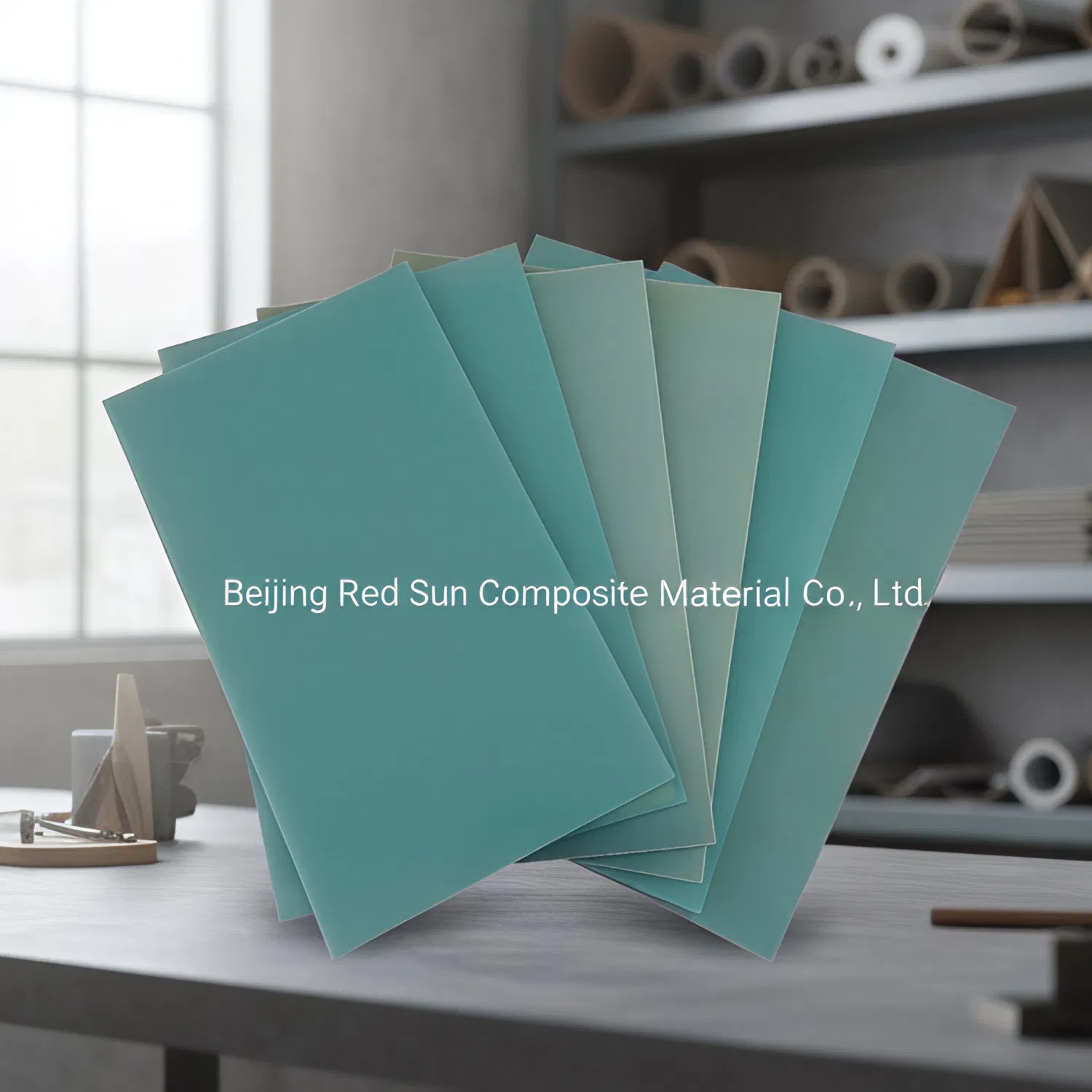

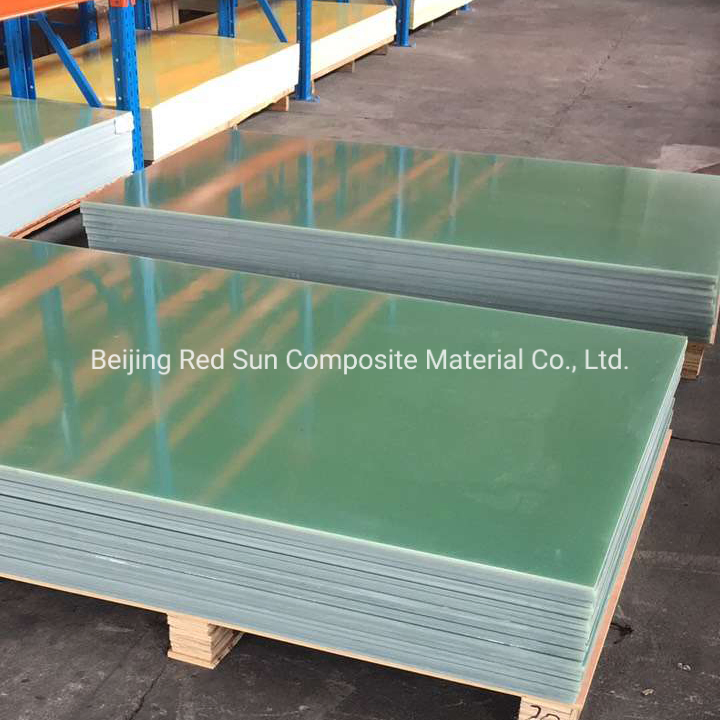

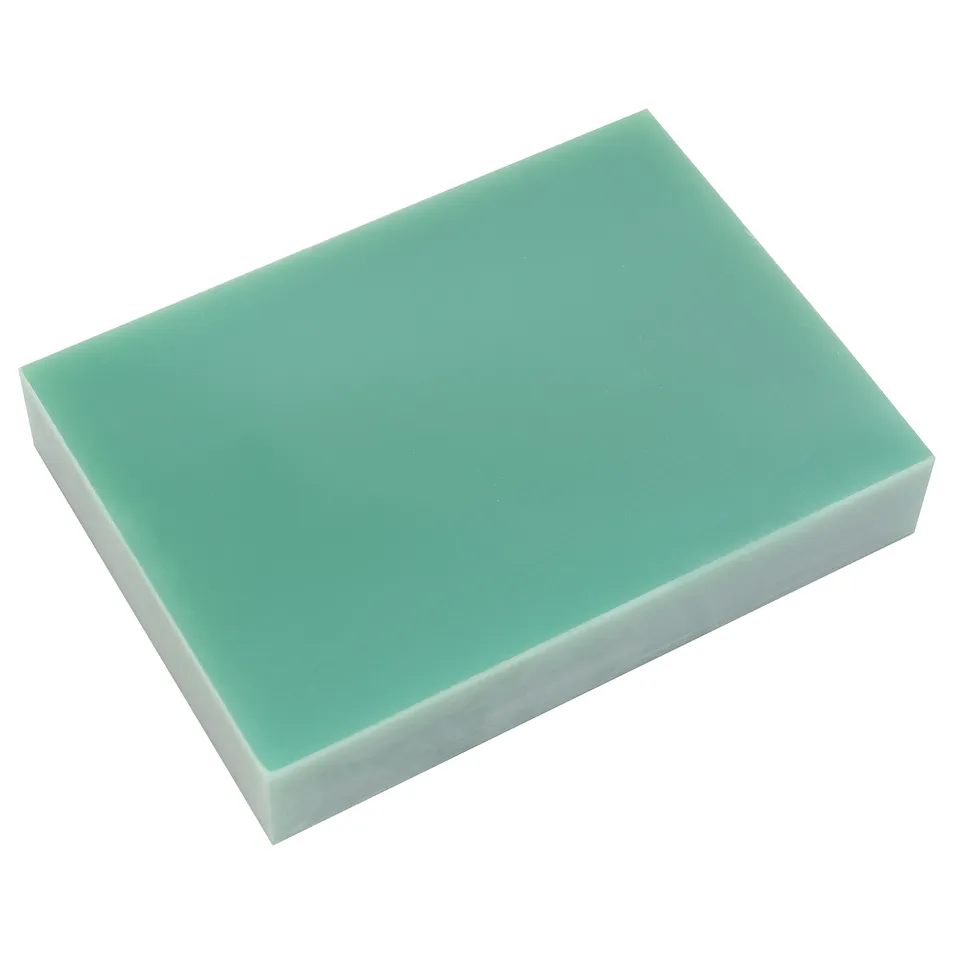

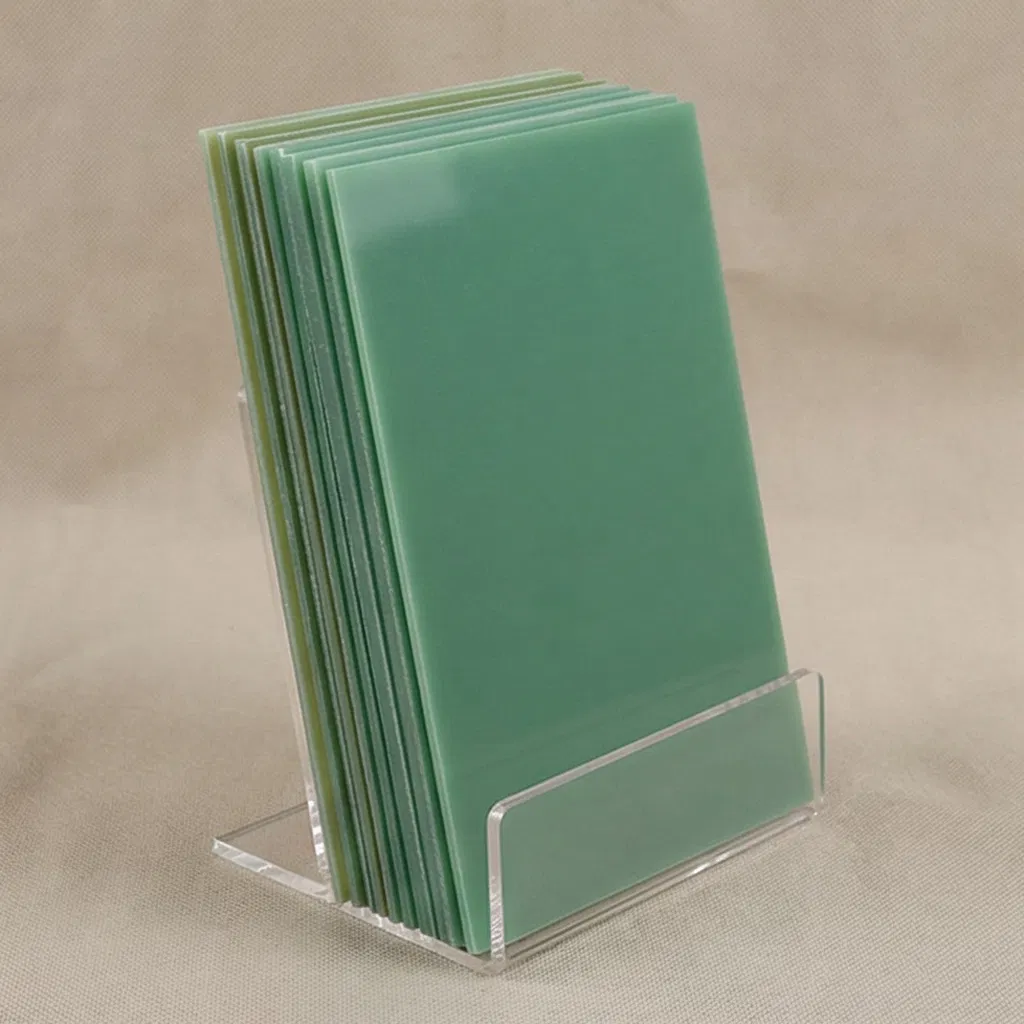

Epoxy Fiberglass Cloth Laminate
Made of E-glass fabric impregnated with epoxy resin by processing under high temperature and pressure. Having excellent electrical and mechanical properties, good heat and moisture resistance. Applicable to insulating structural parts in motors, mechanical and electrical equipment, and can be used in transformer oil.
Available Sizes:
Standard size: 1020*1220mm, 1020*2020mm, 1220*2440mm
Thickness range: 0.1-200mm
Standard Color: Yellow, Green, Natural
| Items | Unit | Typical Value |
|---|---|---|
| Flexural strength perpendicular to laminations (normal conditions) | Mpa | 340 |
| Impact strength parallel to laminations (Charpy) | kJ/m2 | 33 |
| Insulation resistance impregnated in water D-24/23 | Ω | 5.0×10^10 |
| Dielectric strength perpendicular to laminations (in oil 90±2℃), 1mm | MV/m | 14.2 |
| Breakdown voltage parallel to laminations (in oil 90±2℃) | kV | 35 |
| Water absorption, D-24-23, 1.6mm thickness | mg | 19 |
Shipping way: By sea, By air or By express according to your choice.
We try our best to pack and protect the goods according to requirements based on different sizes, hardness, and other details.
Our company is a professional producer for insulating materials which includes: glass fiber reinforced molding parts; glass cloth reinforced laminates, rods and tubes; cotton fabric reinforced laminates, rods and tubes; paper reinforced laminates and tubes; carbon fiber reinforced molding products; high thermal resistant products and engineering plastics, plastic injection, etc. We also provide the further fabrication for these products and all kinds of composite materials.
