• Building exterior and internal curtain walls; canopies.
• Marine partitions, ceilings, decks, furniture, and ship hull decoration.
• Toilet partitions and cleanroom wall cladding.
• Decoration and renovation for old buildings.
• Interior walls, ceilings, bathrooms, kitchens, and balconies.
• Advertisement boards, display platforms, and signboards.
• Industrial materials for truck bodies, vehicles, and boats.

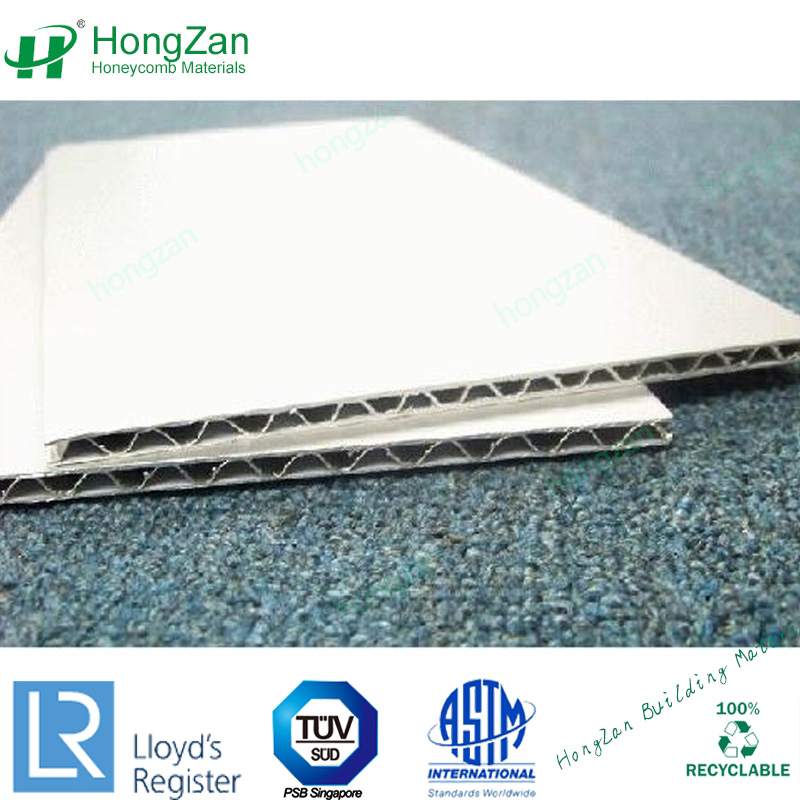

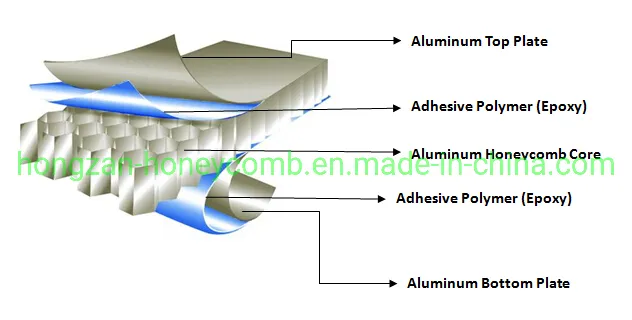

Aluminum honeycomb panels are high-quality composite materials used for ship and building decoration. The surface employs fluorocarbon lacquer (PVDF/PE) pre-roll coating which maintains color stability for 15-20 years. Using bi-component modified epoxy adhesive and automated high-temperature manufacturing, these panels offer superior flatness and bending resistance.
A. Ultra-Light Weight & High Rigidity: Honeycomb panels have only 1/5 the weight of solid aluminum panels for the same rigidity. A 15mm thick panel weighs only 6kg per square meter.
B. Insulation Performance: Division into enclosed cells stops air flow, providing 20-30DB sound reduction and excellent heat conduction coefficients (0.104-0.130W/M.k).
C. Flatness & Finish: Continuous roller coating technology ensures a smooth surface with high weather resistance and adhesion.
| Property | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus W (cm³/m) | 19 | 24 |
| Rigidity E.I (KN cm²/m) | 139,000 | 2,217,000 |
| Sound Insulation (ISO717-RW) | 23 | 25 |
| Heat Transmission U(k) (w/m²k) | 5.59 | 5.575 |

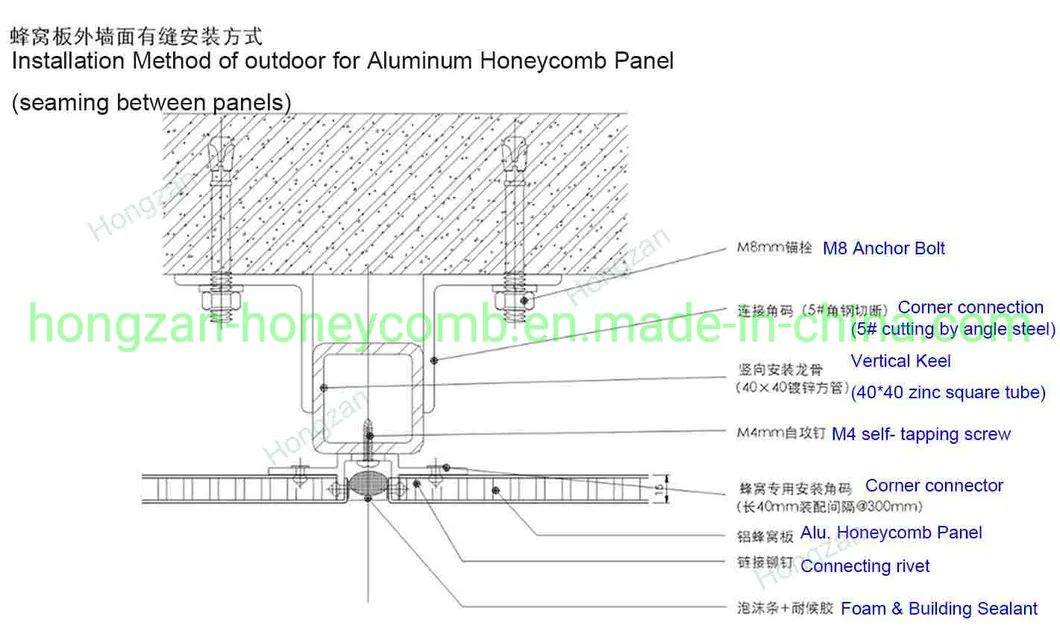

Type A: Standard Seaming Method (Outdoor)

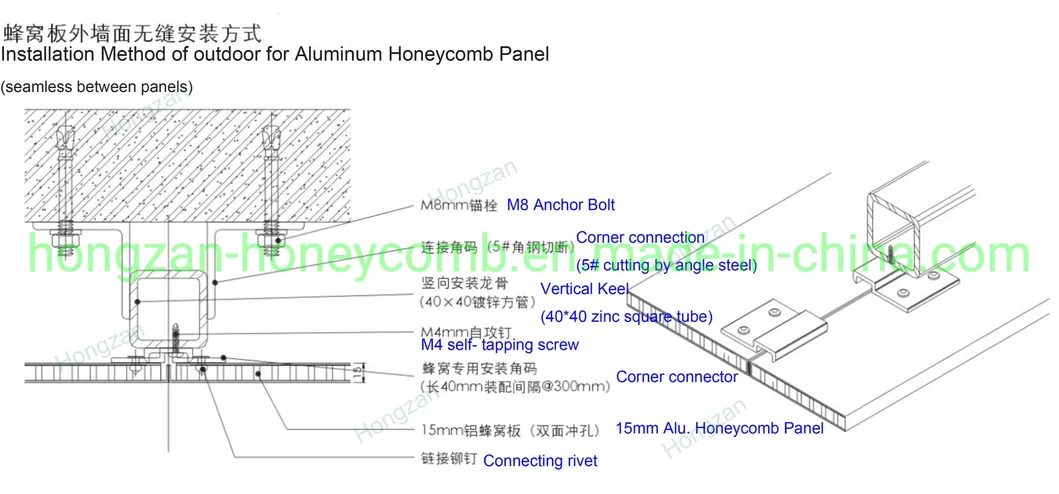

Type B: Standard Seamless Method (Outdoor)
1. ISO 9001:2008 Quality Management System
2. IMO MED Class A Fire Rate (Marine Association)
3. BS 476, 475 by TUV PSD Singapore
4. EN13501-1 by ITS
5. ASTM by ITS
6. CE EN Certificates
