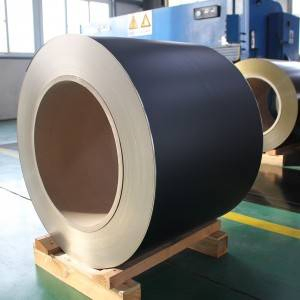

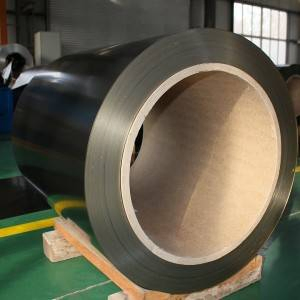

NBR Coating Carbon Steel Rubber Coated Metal Material

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Surface Treatment

Coated

Technique

Cold Rolled

Application

Engine Cylinder Gasket, Accessory Gasket

Edge

Slit edge

Steel Thickness

0.2-0.8mm

Rubber Coating Thickness

0.02-0.12mm

Coating Material

FKM, NBR, NBR Foam

Production Capacity

10000 tons/Month

HS Code

7219900000

Origin

China

Product Description

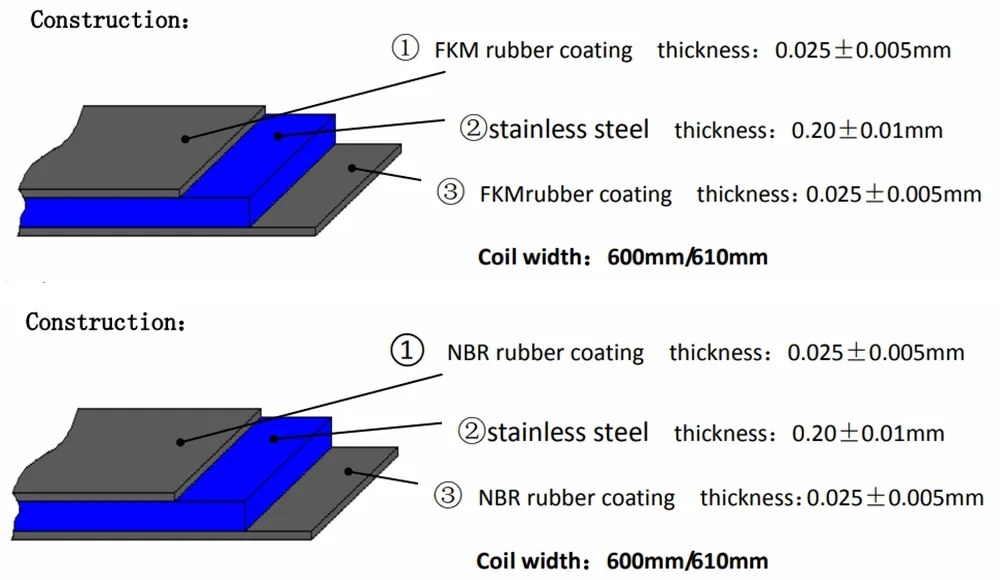

Product Dimension:
Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.12mm. Single and double-side rubber coated metal roll material can meet the requirements of different customers.

Key Characteristics:

★ Excellent temperature resistance: -20ºC to 120ºC (NBR), -40ºC to 290ºC (FKM).

★ Superior sealability for both gas and fluid applications.

★ High mechanical performance with tensile strength up to 100MPa.

★ Strong fluid resistance against mechanical oil, antifreeze, and coolants.

★ Excellent anti-ageing properties and high compression recovery.

★ Fine processing properties for high-efficiency continuous automatic production.

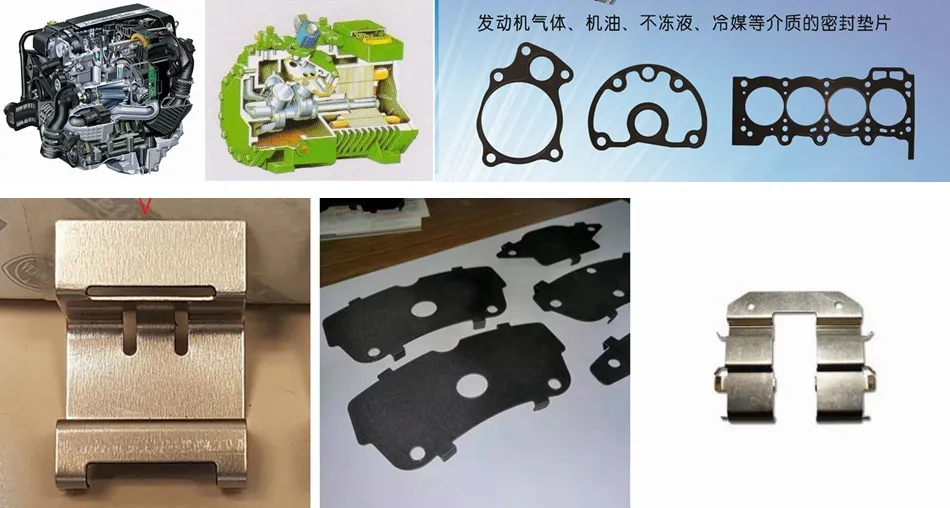

Application

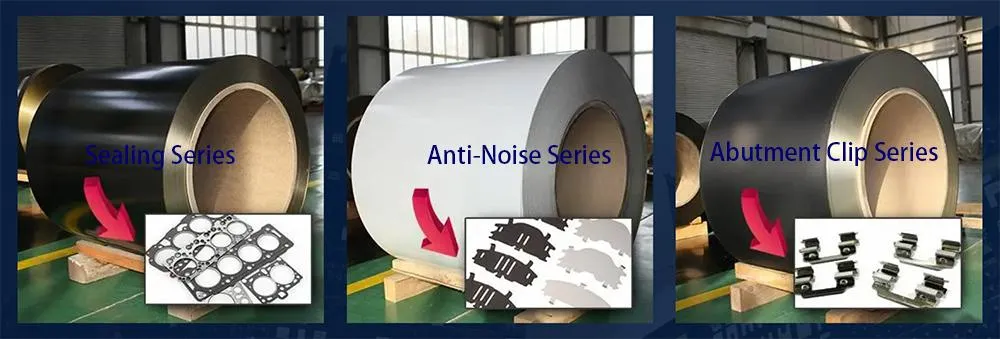

Rubber coated metal materials combine metal rigidity with rubber elasticity. This makes it ideal for automobile and motorcycle cylinder head gaskets, accessory gaskets, and refrigeration/compressor gaskets.

Supplying 90% OE market share for sealing products.

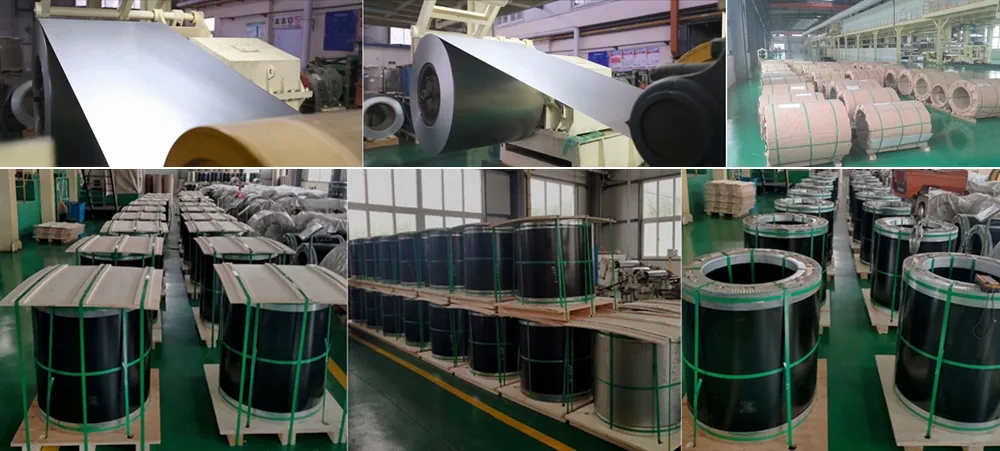

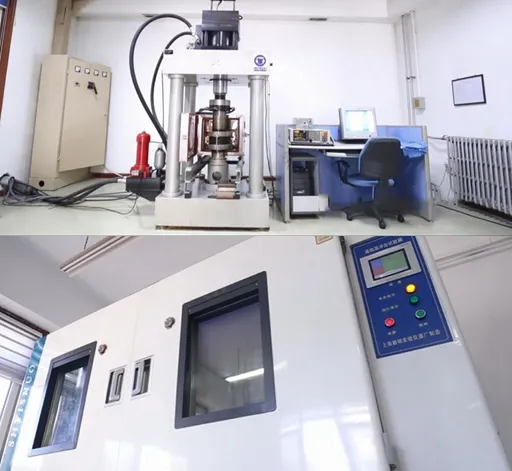

Production & Experimental Facility

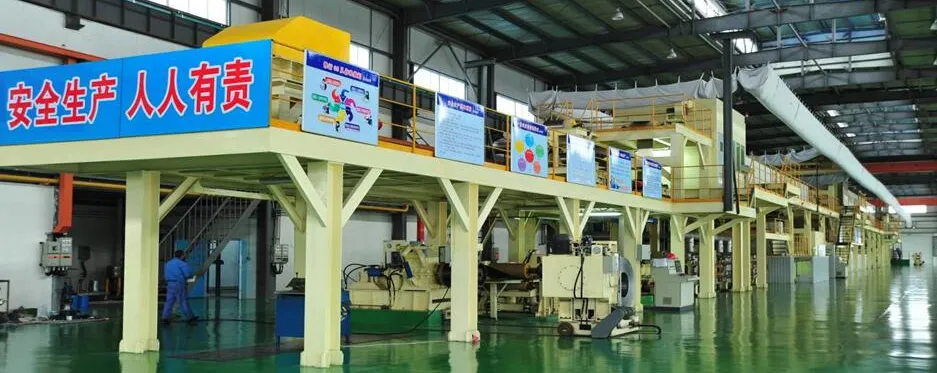

Featuring the first NBR & FKM coating steel coil production line in China. Equipped with key technology from France, Germany, and Japan to ensure premium quality and short lead times.

Phase	Control Points
Pre-control	Marketing research, Product R&D, Raw material purchase, Technological preparation
In Process Control	Manufacturing process, technological control, operator monitoring, environment control
Post-action Control	Finished product inspection, Quality problem disposal, User feedback

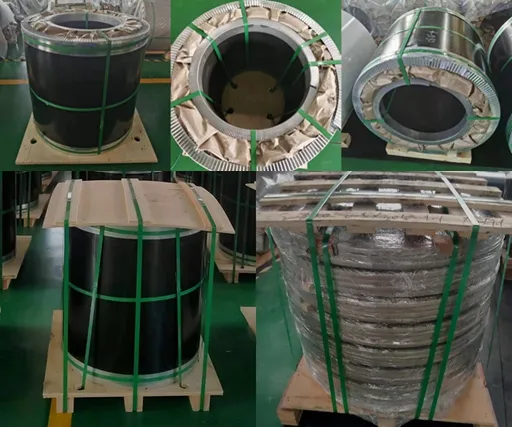

Package and Shipment

Steel collar protectors (Internal/External).
Heat-sealed circumferential plastic strapping.
Radial steel strapping at 90° intervals.
Weight per coil: 900 - 1000 KG.
Palletized on fumigated wood (Min 800*800mm).

Frequently Asked Questions

Can I get a sample?

Sure. We usually provide existing samples in A4 pieces for free. Sample charges for specific requirements are refundable when orders reach a certain quantity.

What is the standard delivery time?

The typical lead time is 20 to 30 days after receiving the T/T prepayment.

Why is the material delivered in master coils?

To optimize costs and offer better pricing. Master coils (width > 600mm) benefit from different export tax structures. We can provide slitting services if you lack the capacity.

What temperature ranges can these materials handle?

NBR coated materials operate between -20ºC and 120ºC, while FKM coated materials can handle extreme conditions from -40ºC up to 290ºC.

What are the available metal substrate thicknesses?

We offer metal substrates ranging from 0.2mm to 0.8mm in thickness, with rubber coatings from 0.02mm to 0.12mm.

Why choose your rubber coated metal materials?

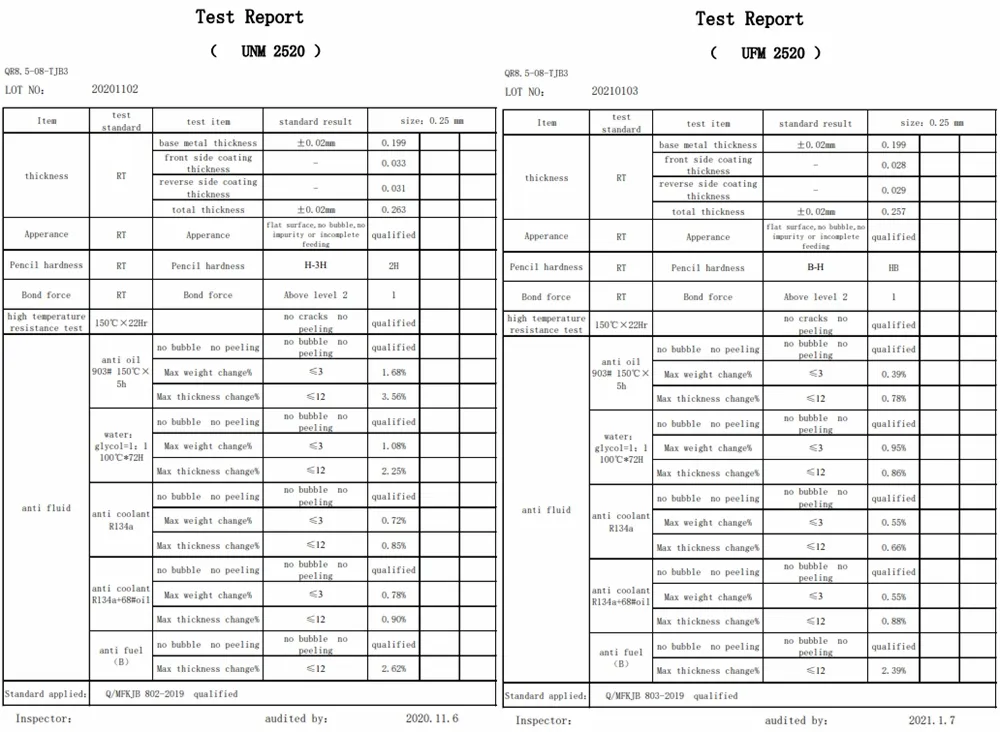

We utilize advanced French, German, and Japanese equipment, rigorous quality inspections, and provide full test reports and certificates to ensure industry-leading quality.
