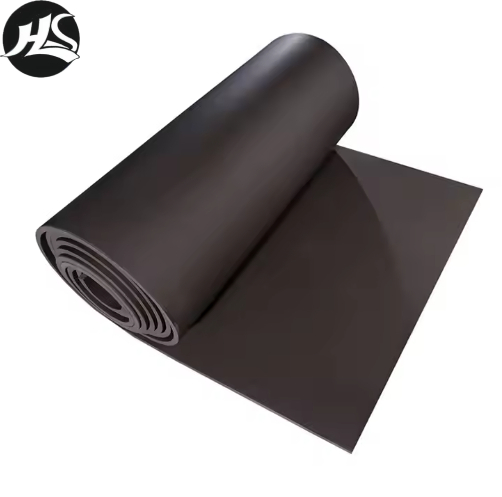

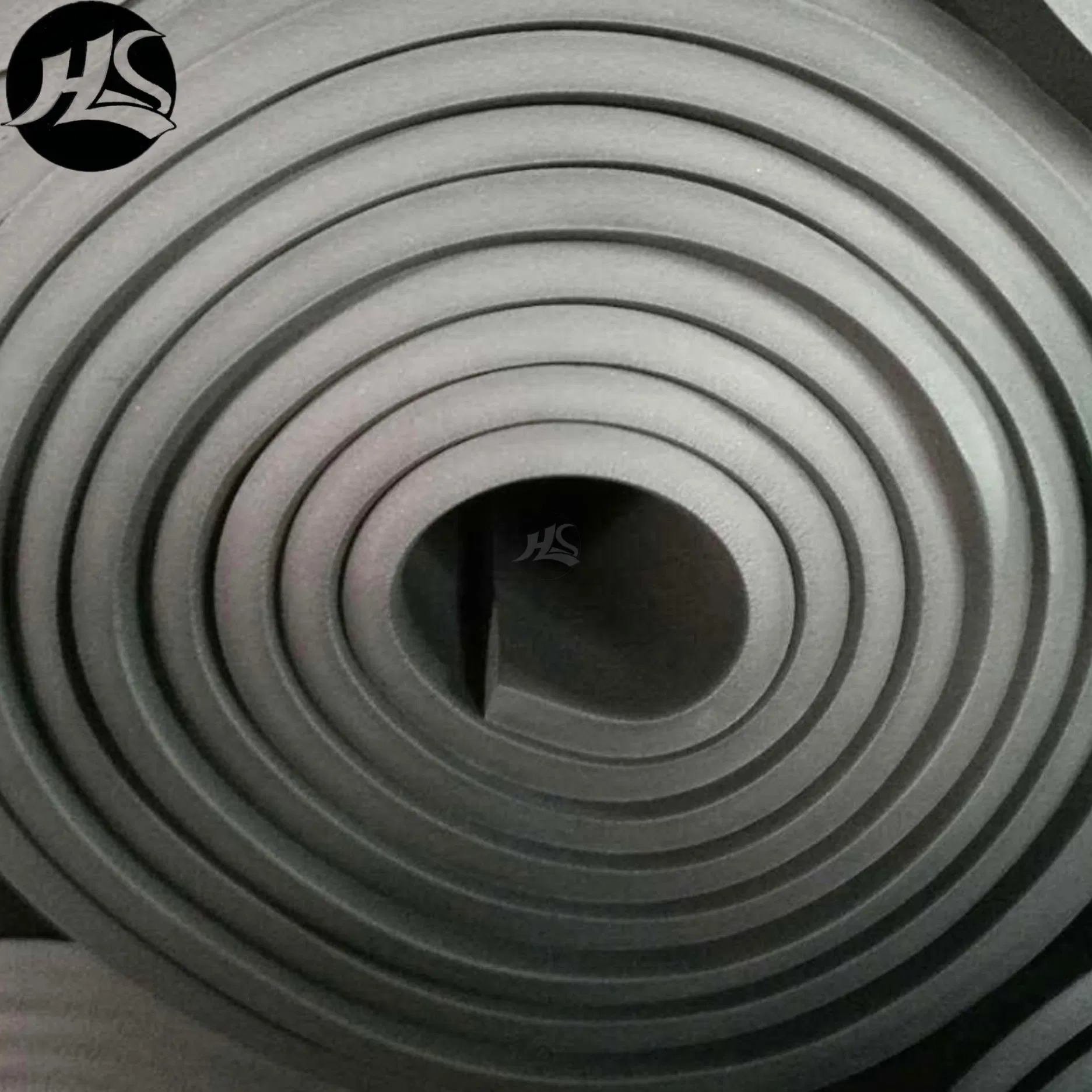

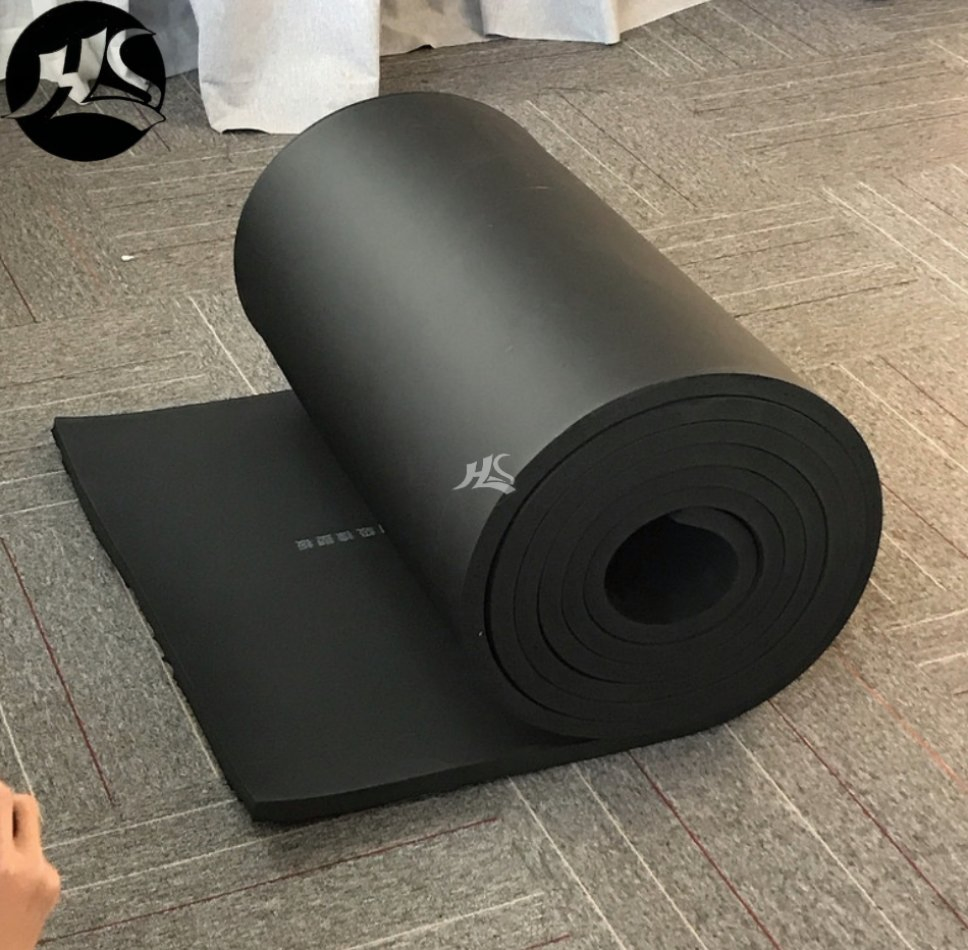

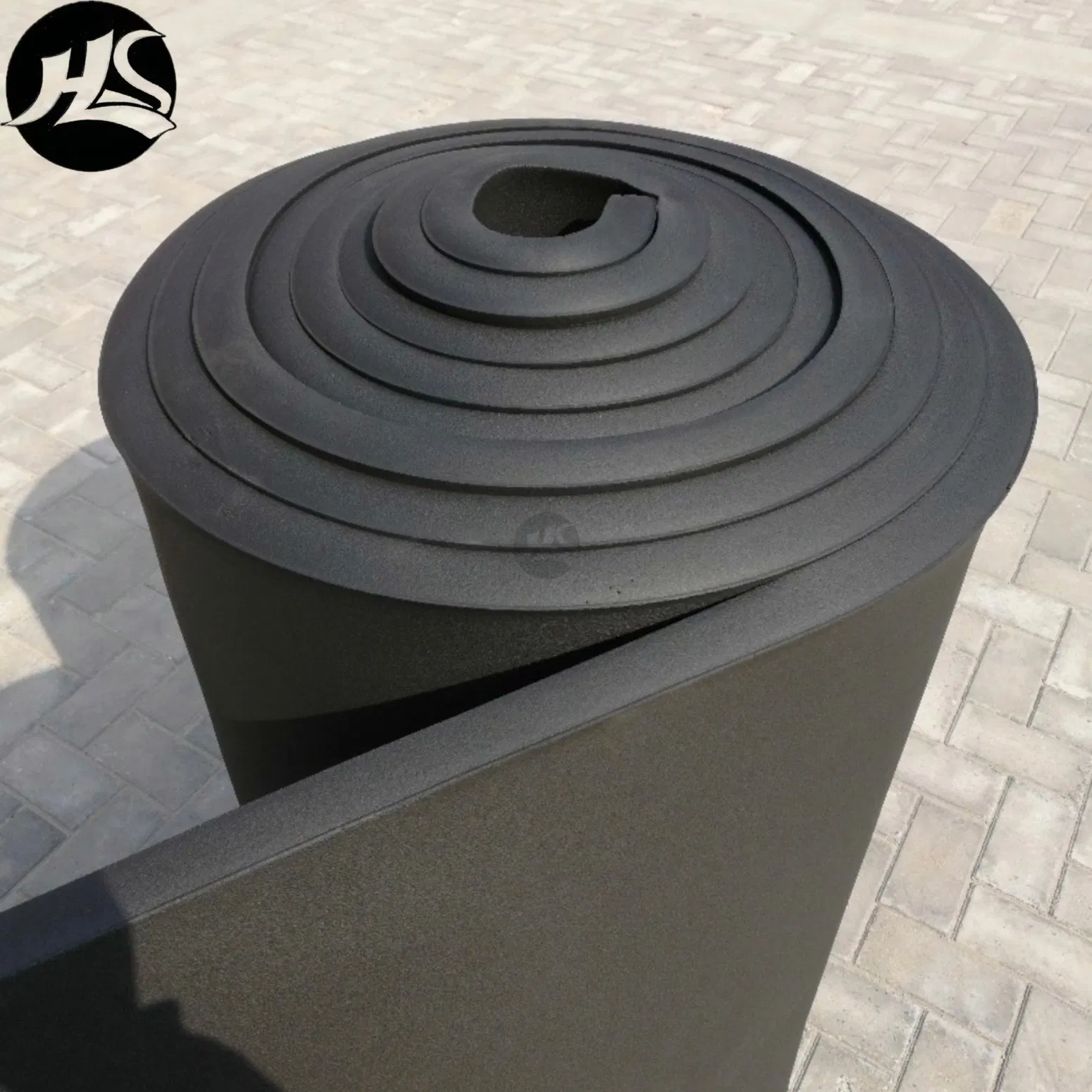

This rubber foam insulation material is produced using cutting-edge technology and automatic production lines. Featuring high-performance nitrile rubber and polyvinyl chloride as main materials, it undergoes specialized processes including burying, curing, and foaming to ensure superior quality.
| Thickness | 3mm | 6mm | 9mm | 15mm | 18mm | 20mm | 25mm | 28mm | 30mm |
|---|---|---|---|---|---|---|---|---|---|
| Length | 30m | 20m | 20m | 10m | 10m | 10m | 8m | 8m | 8m |
* Special production is available according to client specifications.

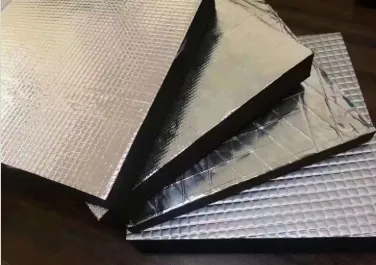

Available finishes for different requirements:
| Tested Content | Tested Value | Tested Method |
|---|---|---|
| Density | 40-80 | GB/T6343 |
| Thermal Conductivity W/(m·k) | -20°C ≤0.030 / 0°C ≤0.032 / 40°C ≤0.037 | GB/T10294 |
| Moisture Permeability | ≤1.3*10^11 | GB/T17146 |
| Wet Resistance Factor | ≤6 | GB/T17794 |
| Flame Retardant Performance | Class 0 | BS 476:Part 6 |
| Applicable Temperature | -50 ~ 110 °C | GB/T17794 |
The manufacturing process uses high-performance butyronitrile rubber and polyvinyl Chloride (NBR, PVC) as main raw materials, processed through a continuous full-automatic production line.
