Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
1 / 5
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials
Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials

Acm Aluminum Composite Materials for Building Wall Cladding Facade Materials

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Aluminum Thickness
0.15mm
Function
Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage
External Wall, Curtain Wall, Interior, Advertising
Certification
CE, ISO, SGS
Coating
PE PVDF
Colors
Glossy Matte
Fr
B1
Transport Package
Wooden Pallet
Specification
1220x2440mm
Trademark
OEM
Origin
China
HS Code
76061251
Production Capacity
20,000,000m2

Product Description

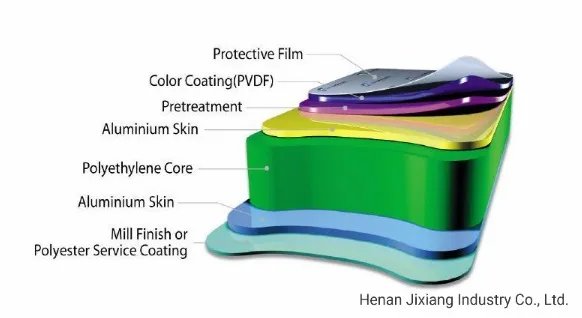

ALUMINUM COMPOSITE PANEL

Aluminum-plastic composite board (aluminum plate) is formed by surface treatment and coating with aluminum paint as a surface, polyethylene or polypropylene plastic mixture as the core layer. After a series of processing, it becomes a high-performance type of composite material.

Detail Products Information:

Panel thickness1.5--8.0mm (2mm, 3mm, 4mm, 5mm)
Alu skin thickness0.03--0.6mm (0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.30mm)
Width1000--1570mm (1000mm, 1220mm, 1250mm, 1500mm)
Length1000--6000mm (2440mm, 3050mm, 4000mm, 5000mm)
ColorsAll colors available
CoatingPE & PVDF (PE coating, Primer Coating, Mill finish)
Lead time15 days
Acm Aluminum Composite Materials

Products Tolerance:

Panel Width:±2mm
Panel Length:±3mm
Panel Thickness:±0.2mm
Panel Diagonal:≤ 5mm
Aluminum layer thickness:±0.02mm
Building Wall Cladding Facade Materials

Why Choose Us

✓
24 advanced composite production lines and 6 aluminum coil coating lines.
✓
Strictly comply with international standards; passed ISO, SGS, CE, Rohs certificates.
✓
Founded in 1999, rich production experiences in aluminum composite panels.
✓
Absolute scale and experience advantages ensure quality guaranteed orders with fast delivery.
✓
Professional OEM Service provided.
✓
Multiple specifications and colors for selection, with customized color support.
Acm Aluminum Composite Materials Options

Frequently Asked Questions

Q: What is the standard size of your Aluminum Composite Panels?
A: Our standard specification is 1220x2440mm, but we can provide lengths from 1000mm up to 6000mm.
Q: What are the main applications for these panels?
A: They are widely used for external wall cladding, curtain walls, interior decoration, and advertising boards.
Q: Do the panels have fireproof properties?
A: Yes, our panels offer fireproofing functions and carry a B1 Fr rating.
Q: What type of coatings do you offer?
A: We provide both PE (Polyethylene) and PVDF coatings, as well as primer coating and mill finishes.
Q: What is the typical lead time for an order?
A: Our standard lead time is approximately 15 days, thanks to our 24 advanced production lines.
Q: Are your products certified?
A: Yes, our products strictly comply with international standards and have passed CE, ISO, and SGS certifications.
