Basic Info.
Material
Composite Silicon Carbide and Boron Carbide
Protection Level
Nij III/ IV Multi Hit
Production Capacity
10,000,000/Year
Advanced Ceramic Technology
🛡️Material Lighter and Tougher
Pioneering innovation in ceramics, we proudly introduced the groundbreaking pressureless sintered B4C formula. This advancement has led to the crafting of boron carbide ceramics, which boast exceptional properties of hardness, strength, and toughness. These superior ceramics are perfectly suited for body and vehicle armor protection.
💰Cost-Effective Sintering
Leading the industry, we developed a revolutionary pressureless sintering process for SB4C and designed cutting-edge sintering furnaces. This process elevates the output of a single furnace by tenfold, reduces the sintering cycle by half, and slashes costs by more than 60% compared to traditional hot press methods.
✨High Purity Nano-Powder
We devised an innovative nano-boron carbide powder process technology achieving an unparalleled purity level of up to 99% and a powder particle size of D50≤150nm.
Large Scale Production Capacity

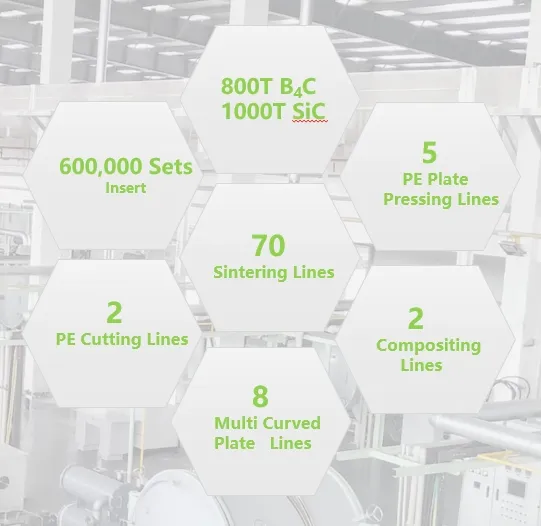

We possess a comprehensive production capacity across the entire chain of protection ceramics, PE plates, and inserts. With an annual production capacity of 800 tons of boron carbide sinters, 1000 tons of silicon carbide sinters, and 600,000 sets of multi-curved boron carbide inserts.
Our infrastructure includes 7 ceramic powder production lines, 8 multi-curved ceramic plate lines, 70 sintering lines, 5 PE plate pressing lines, and 2 hot pressing compositing lines.

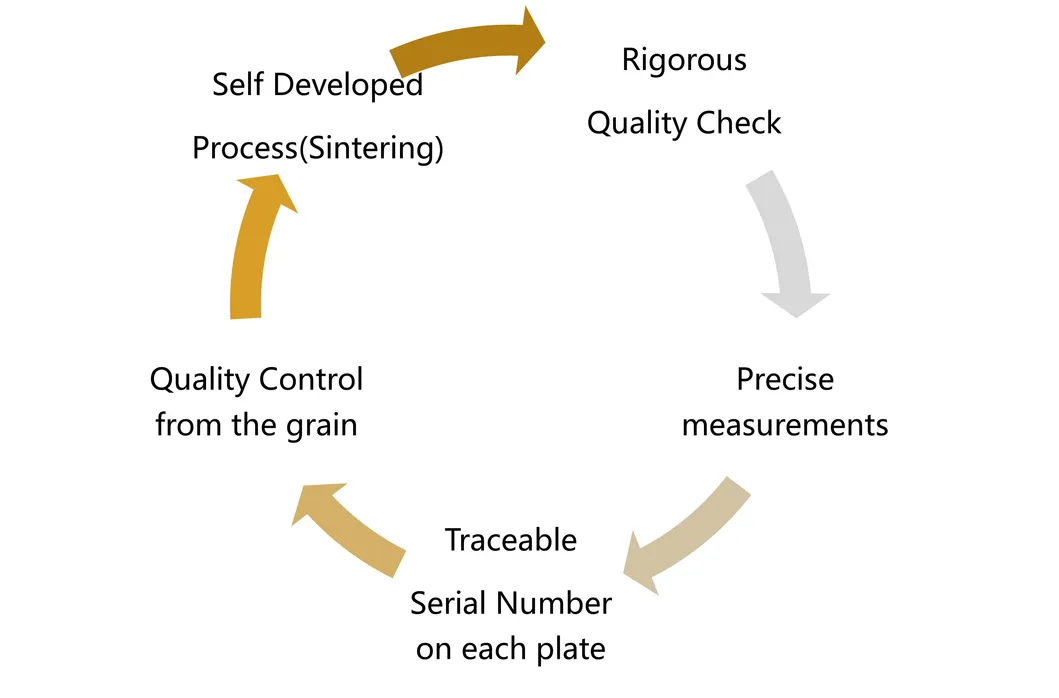

Strict Quality Control
With 17 years of dedicated research and advancement in ceramics, a robust closed-loop quality control system has been established. This meticulous system encompasses every stage, from raw materials to product processing and final quality inspections.
Material Properties
| Material |
SB4C |
SSiC+B4C |
SSiC |
| Material Item No. |
BC19 |
BC15-2 |
SC01 |
| Density |
≥2.45g/cm³ |
≥2.72g/cm³ |
≥3.13g/cm³ |
| Hardness (HV1.0) |
≥29GPa |
≥27GPa |
≥26GPa |
| Bending Strength |
≥350MPa |
≥380MPa |
≥360MPa |

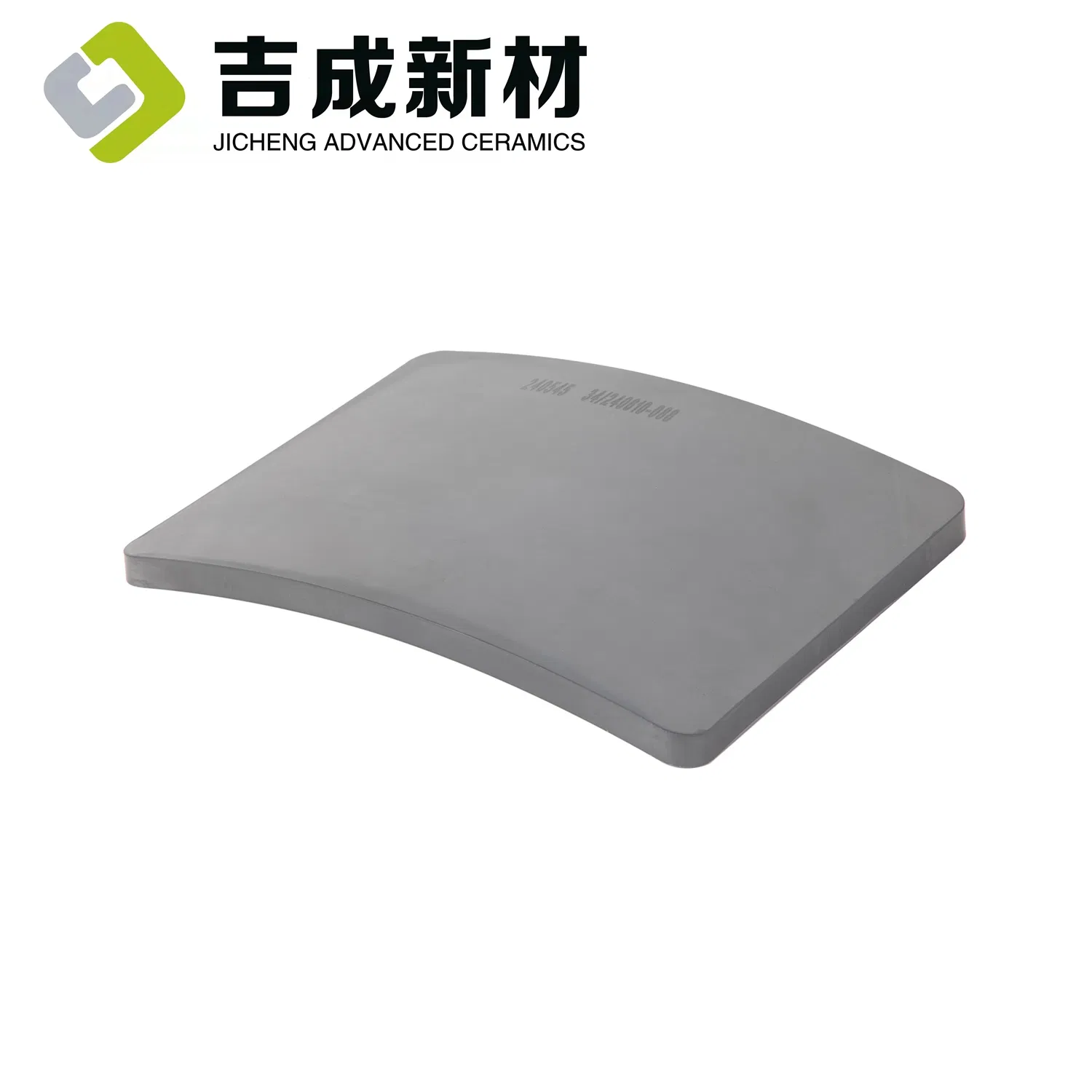

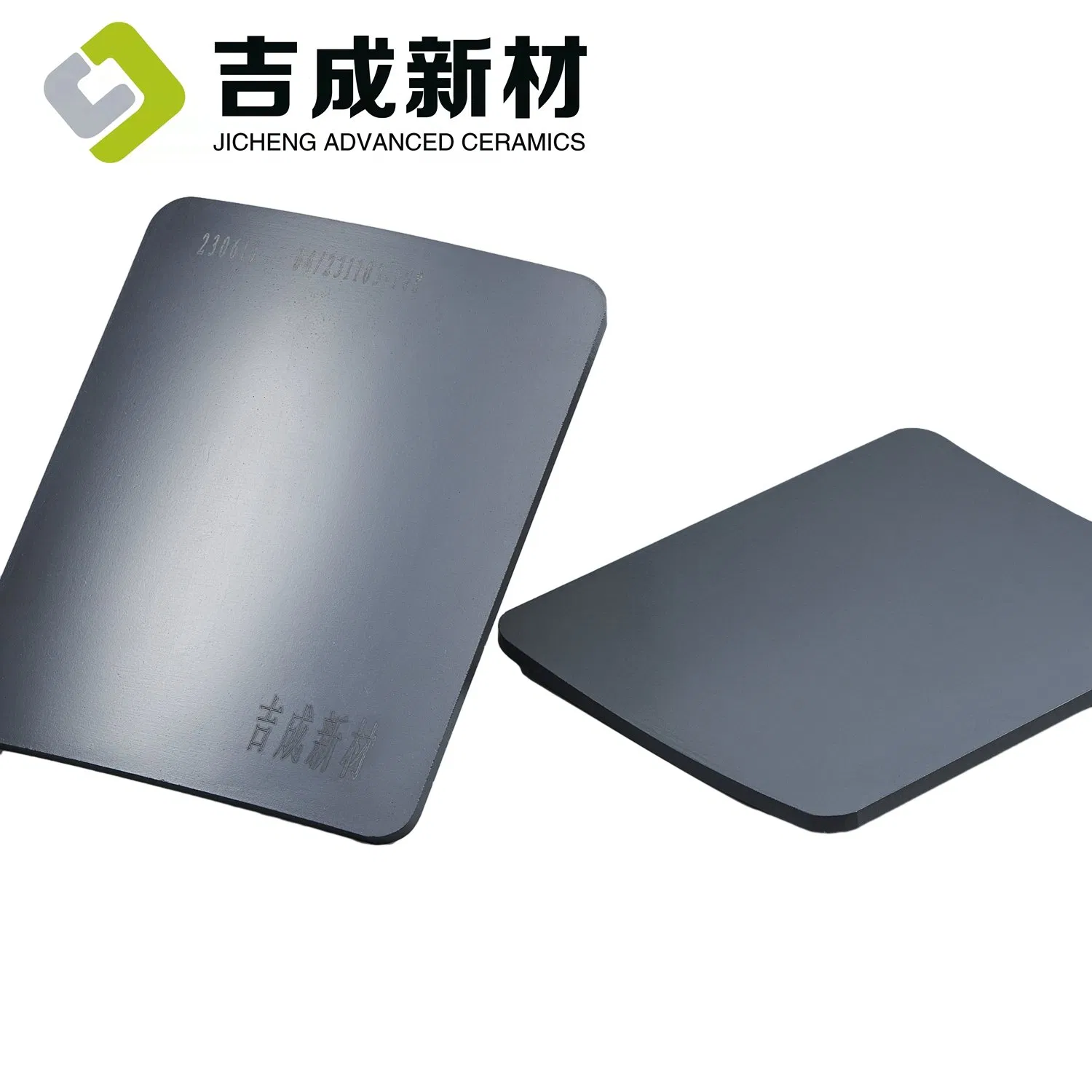

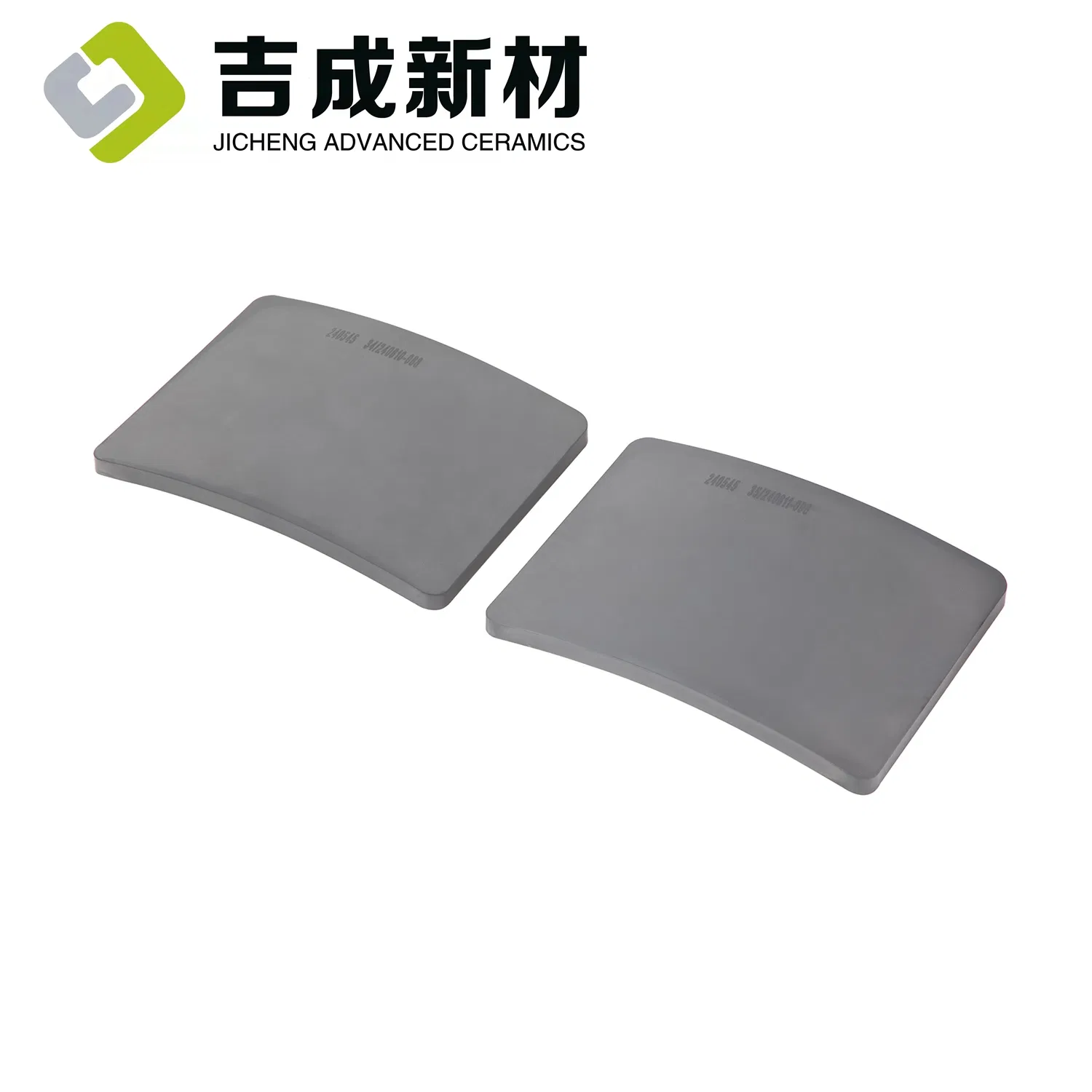

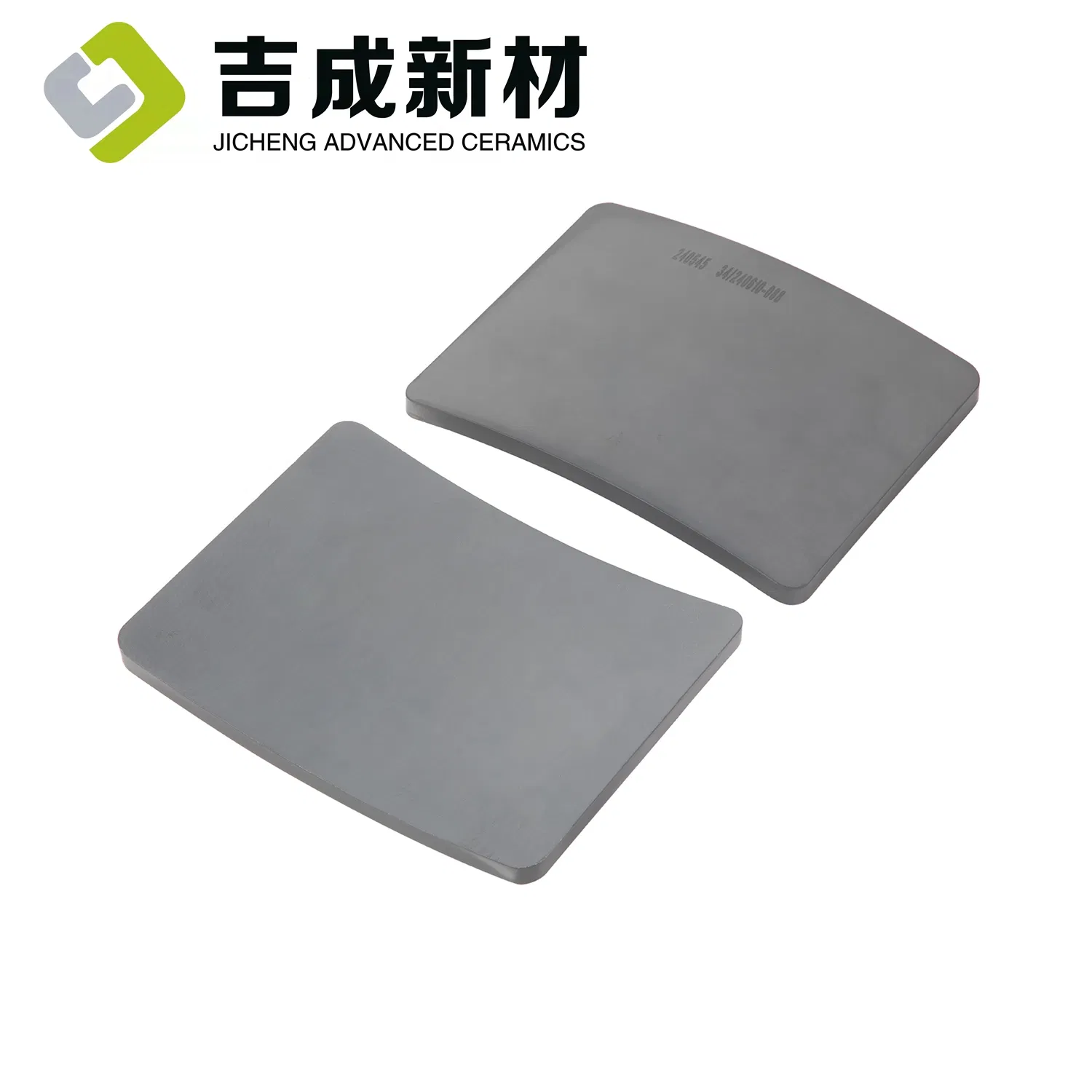

➜ Customizable shapes and sizes (multi-curved or single-curved).
➜ Thickness ranging from 4mm to 12mm.
➜ Material options: SSiC, SB4C, and SiC+B4C Composites.
About Our Expertise
Founded in 2007, the company is a premier provider of ceramic materials, solutions, and services. Key offerings include silicon carbide, boron carbide, and composite ceramics available as powder, tiles, and monolithic plates.

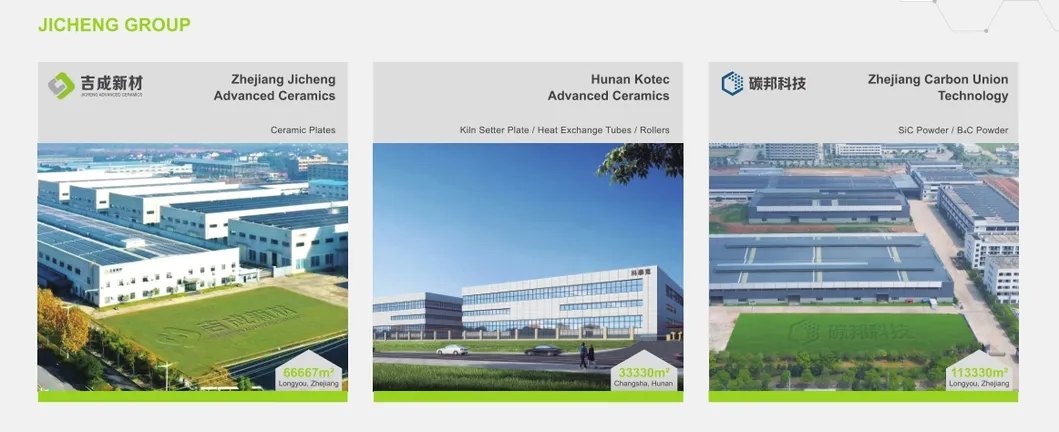

Acknowledged as a National High-Tech Enterprise, the company operates three advanced production bases. With 84 patents and 13 trademarks, the portfolio encompasses solutions for military, photovoltaic, chemical, and lithium power sectors.
Frequently Asked Questions
What protection levels are available for your ceramic plates?
Our ceramic plates are designed for high-level protection, specifically meeting NIJ III and IV multi-hit standards.
What are the primary materials used in your armor inserts?
We specialize in SB4C (Boron Carbide), SSiC (Silicon Carbide), and SiC+B4C Composite materials to balance weight and hardness requirements.
Can the plates be customized to specific sizes?
Yes, we offer customizable shapes and sizes with thicknesses ranging from 4mm to 12mm, in both single-curved and multi-curved options.
What makes your pressureless sintering process better?
Our proprietary process reduces production costs by 60% and doubles the production cycle efficiency compared to traditional hot-pressing while maintaining superior hardness.
What is the annual production capacity for your ceramics?
We have a massive scale capacity, including 800 tons of boron carbide and 1000 tons of silicon carbide sinters annually.
Are your materials suitable for vehicle armor?
Absolutely. Our boron carbide and silicon carbide ceramics are engineered for both personal body armor and heavy vehicle protection applications.
