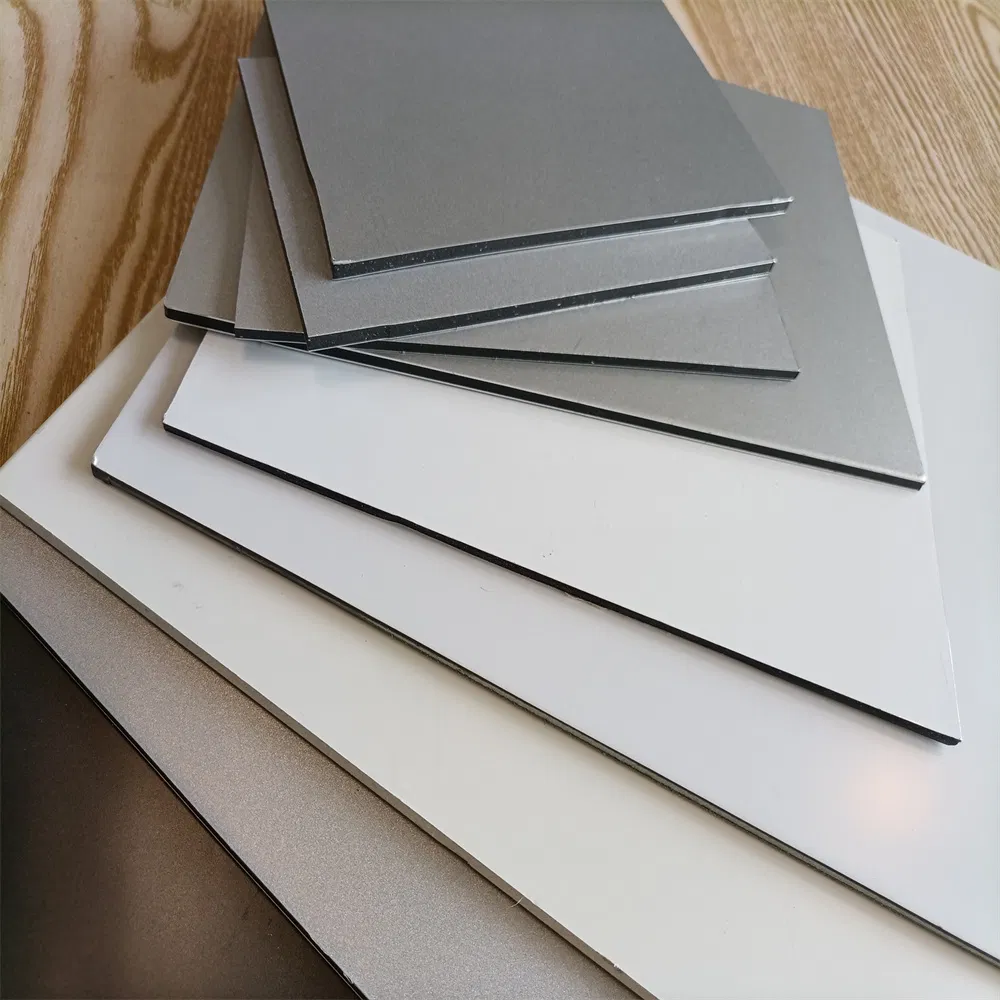

Short Description: Aluminum composite panel have polyester aluminum composite panel and PVDF aluminum composite pane.

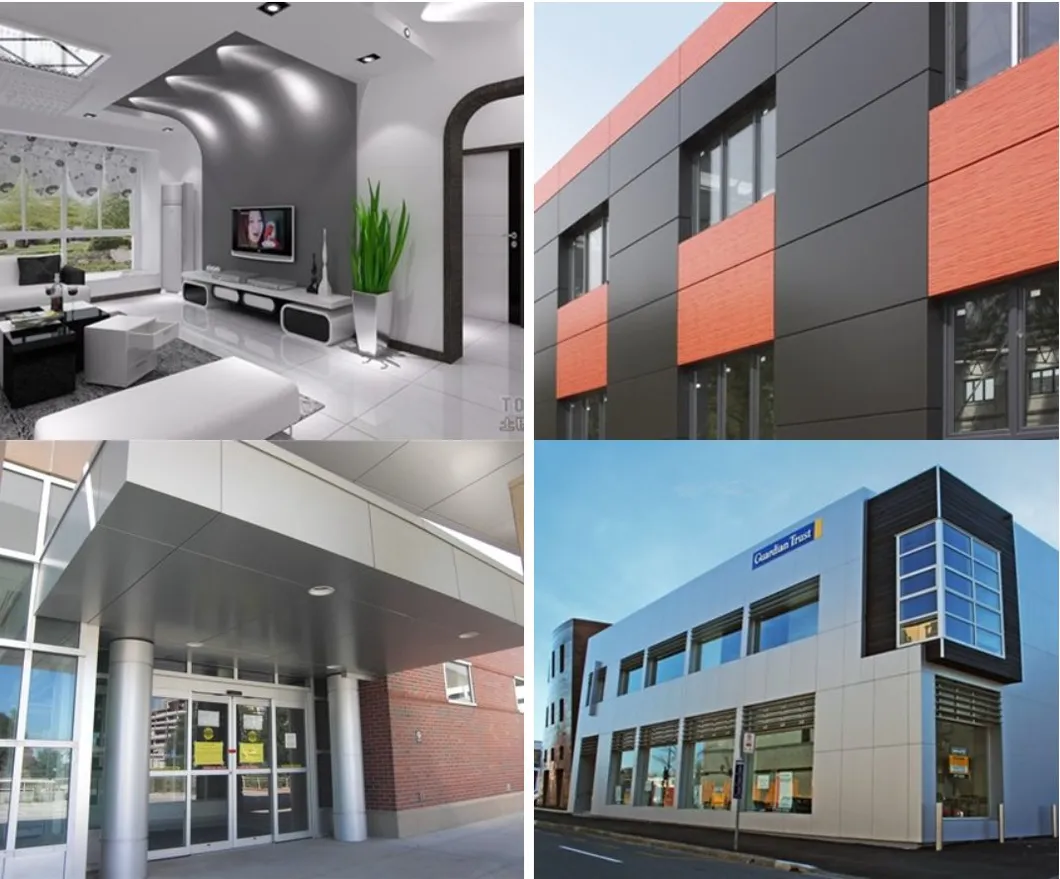

Polyester aluminum composite panel consists of aluminum layers on both sides with a polyethylene core. It's coated with a polyester lacquer. The low weight sheet material can be easily fabricated, making it an ideal material for creative applications both indoors and outdoors.
PVDF aluminum composite panel consists of two layers of aluminum skin sandwiching a PE core in a continuous extrusion process. The outer surface of panel is coated with PVDF Kynar500 fluorocarbon coating to provide a long lasting, durable finish for wall cladding applications.

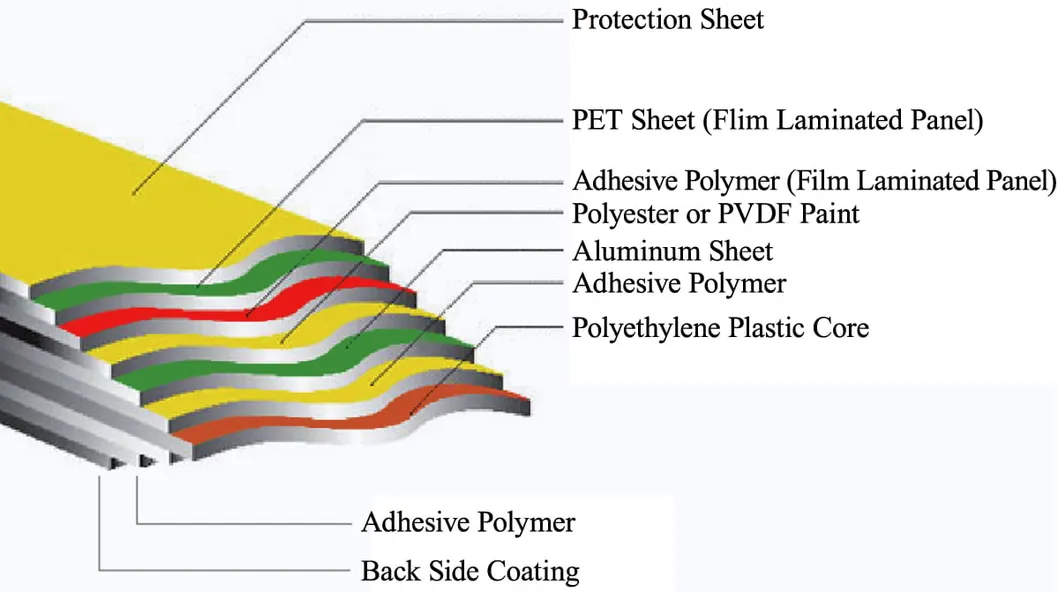

ACP Structure:
| Category | Details |
|---|---|
| Product | Aluminum Composite Panel, ACP |
| Aluminum Skin | 0.08/0.1/0.12/0.15/0.18/0.21/0.25/0.30/0.35/0.4/0.45/0.5mm |
| Panel Thickness | 2-8mm |
| Size | 1220*2440mm, 1250mm*3050mm, 1500*3050mm, 2000*3000mm, Customized |

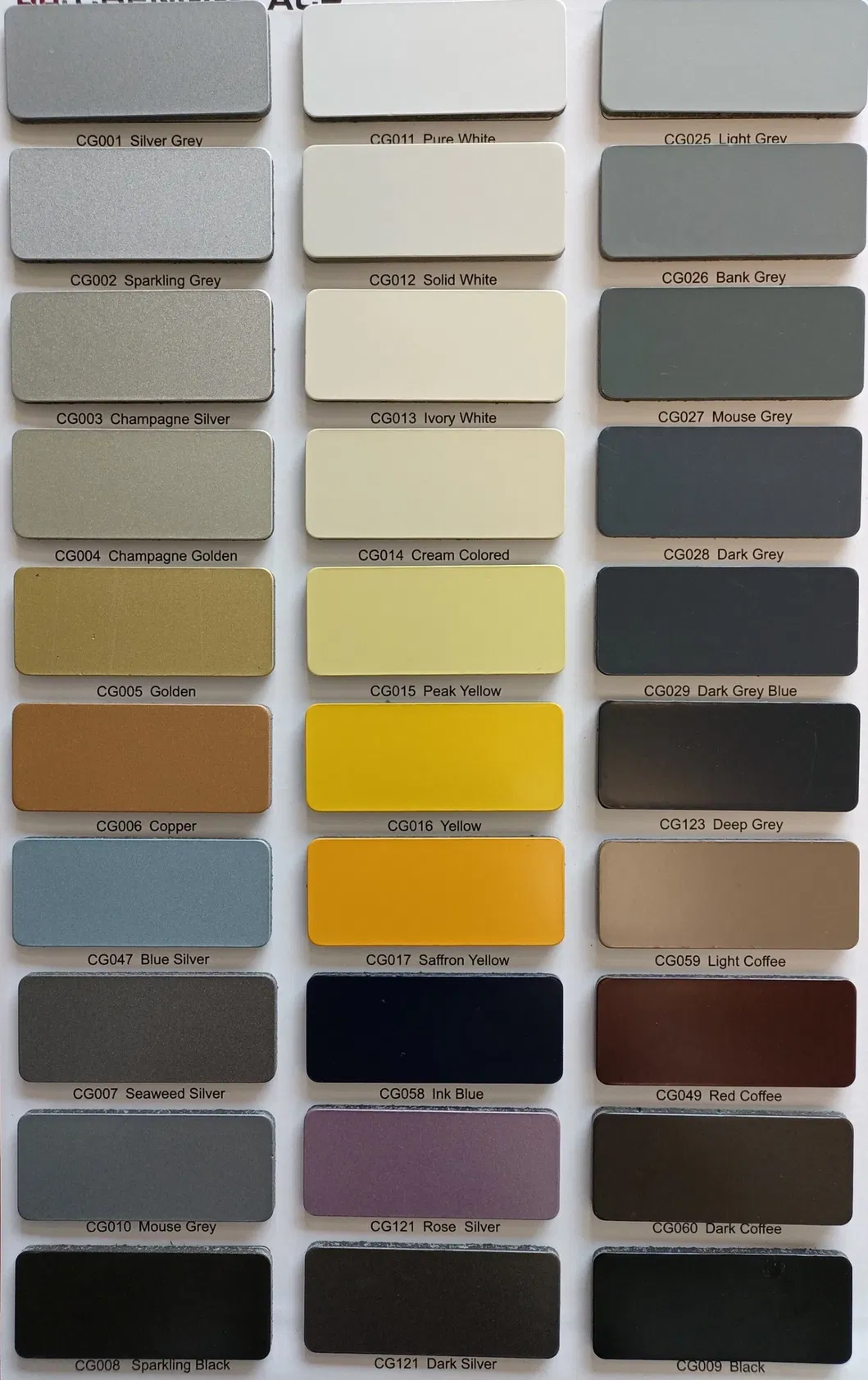

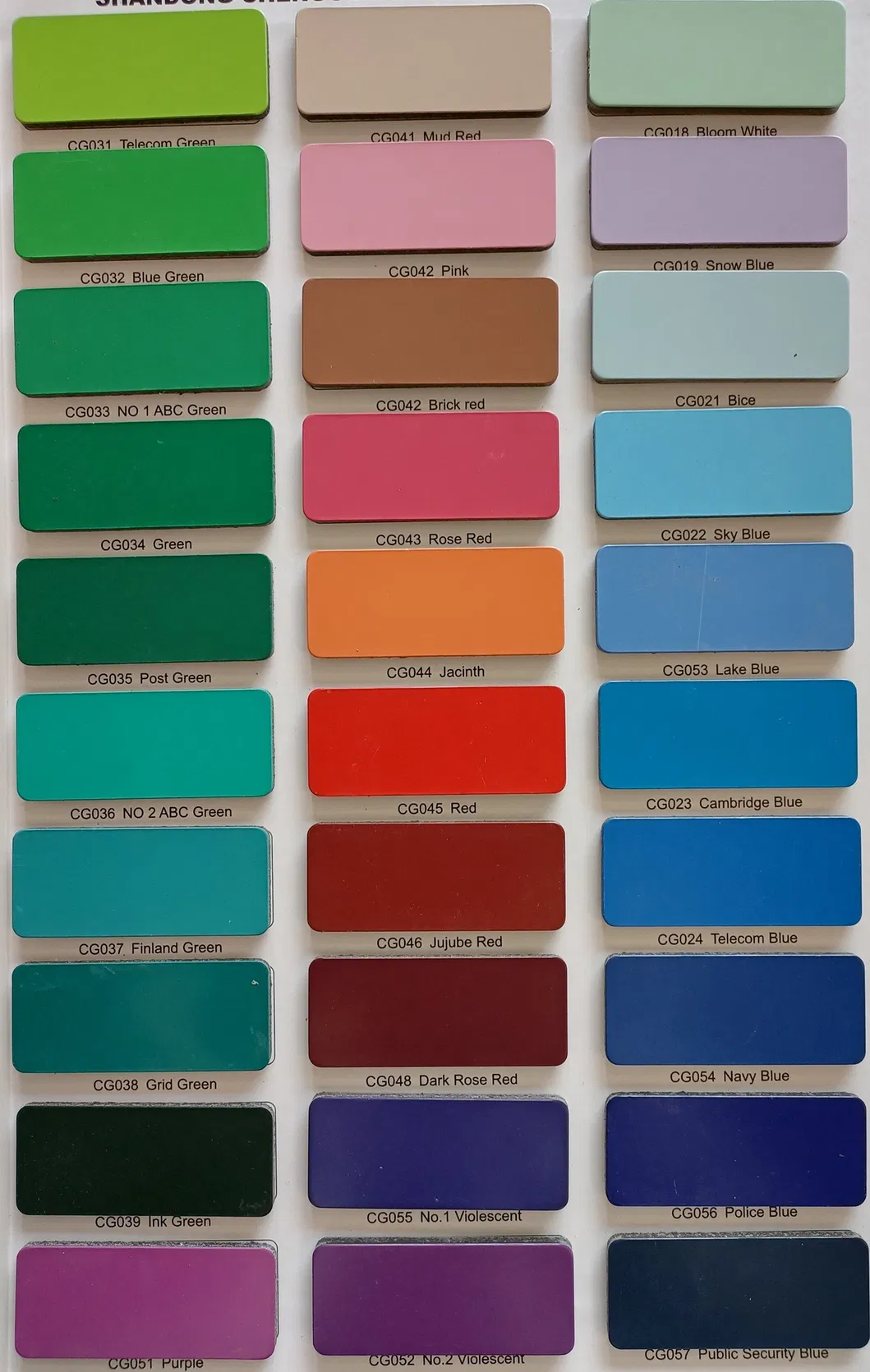

| Color | 60 colors, special colors available upon request |
| Payment | L/C, T/T, Western Union, MoneyGram, Paypal |
| MOQ | 100-200PCS/ each item |
| Delivery | 10-15 days after confirm your order |
| Color different | ΔE<=2.0 |
| Pencil hardness | >=2H |
| Coating adhesion | Grade 1 (>=1grade for 10*10mm2 gridding test) |
| Impact test for paint | No split (20KG impact-paint no split for panel) |
| Peeling strength/ stripping strength | 5N/mm |
| Resist solvent | No change (100 times with Dimethy benzene without change) |
| Thermal Expansion Coefficient | 2.4mm/m (100ºC temp difference) |
| Detergent resistance (3%) | No change |
| Chemical resistance | No change (2%HCI or 2% NaOH test in 24 hours) |
| Boiling water resistance | No change (2 hours without change) |
